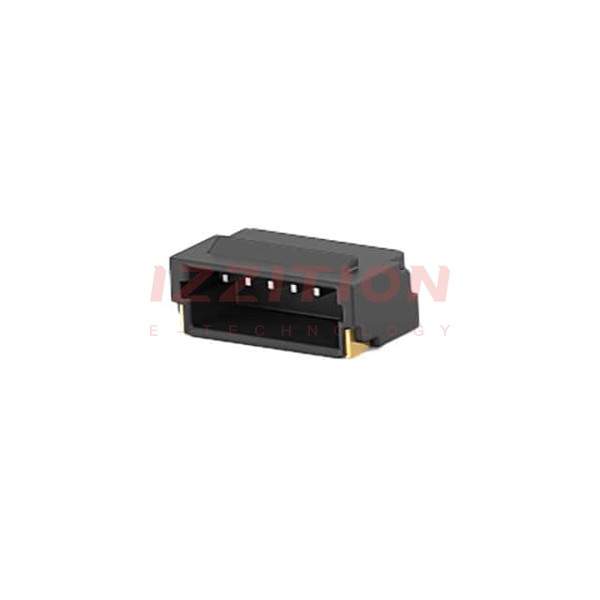

TE Connectivity AMP Connectors 2367196-6

Manufacturer No:
2367196-6
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
2367196-6 Datasheet
ECAD Model:
-
Description:
1.0MM WTB RIGHT ANGLE TYPE WITH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.087" (2.21mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.114" (2.90mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:5.00µin (0.127µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Halogen Free
Features:Pick and Place, Solder Retention
Operating Temperature:-40°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2A
Voltage Rating:50V
0 Remaining View Similar

In Stock

$1.00
427

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2367196-6 2367197-6   2367196-8   2367196-3
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active
Connector Type Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm)
Number of Positions 6 6 8 3
Number of Rows 1 1 1 1
Row Spacing - Mating - - - -
Number of Positions Loaded All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle Surface Mount Surface Mount, Right Angle Surface Mount, Right Angle
Termination Solder Solder Solder Solder
Fastening Type Locking Ramp Locking Ramp Locking Ramp Locking Ramp
Contact Length - Mating 0.087" (2.21mm) - 0.087" (2.21mm) 0.087" (2.21mm)
Contact Length - Post - - - -
Overall Contact Length - - - -
Insulation Height 0.114" (2.90mm) 0.169" (4.30mm) 0.114" (2.90mm) 0.114" (2.90mm)
Contact Shape Rectangular Rectangular Rectangular Rectangular
Contact Finish - Mating Tin Tin Tin Tin
Contact Finish Thickness - Mating 5.00µin (0.127µm) 5.00µin (0.127µm) 5.00µin (0.127µm) 5.00µin (0.127µm)
Contact Finish - Post Tin Tin Tin Tin
Contact Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Insulation Material Thermoplastic, Halogen Free Plastic, Halogen Free Thermoplastic, Halogen Free Thermoplastic, Halogen Free
Features Pick and Place, Solder Retention Solder Retention Pick and Place, Solder Retention Pick and Place, Solder Retention
Operating Temperature -40°C ~ 85°C -40°C ~ 105°C -40°C ~ 85°C -40°C ~ 85°C
Ingress Protection - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black
Current Rating (Amps) 2A 1A per Contact 2A 2A
Voltage Rating 50V 50V 50V 50V
