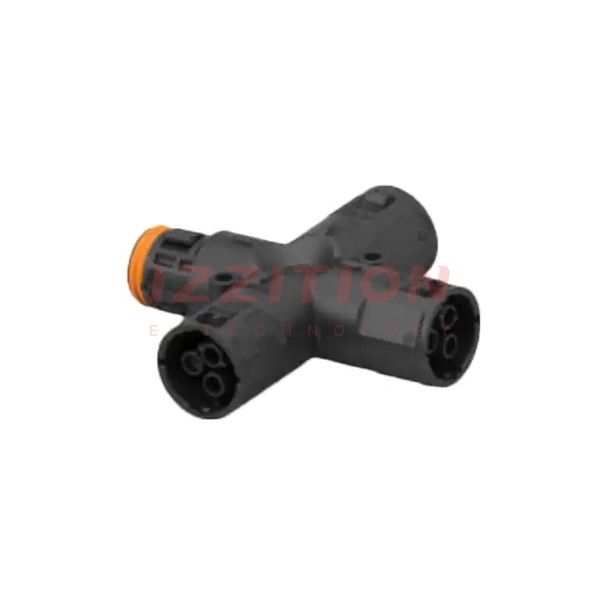

| Part Number | 2359421-1 | 2359422-1 | 2359420-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Style | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire |
| Connector Type | MULTI Splitter | Receptacle, Female Sockets | T-Splitter |
| Number of Positions | 3 | 3 | 3 |
| Mounting Type | Screw | Panel Mount | Screw |
| Termination | - | Screw | - |
| Pitch | - | - | - |
| Fastening Type | - | - | - |
| Features | - | - | - |
| Housing Color | Black | Black | Black |
| Wire Gauge | - | 14-16 AWG | - |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Tin | Tin | Tin |
| Housing Material | Polybutylene Terephthalate (PBT), Polycarbonate (PC) | Polybutylene Terephthalate (PBT), Polycarbonate (PC) | Polybutylene Terephthalate (PBT), Polycarbonate (PC) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
