Please send RFQ , we will respond immediately.

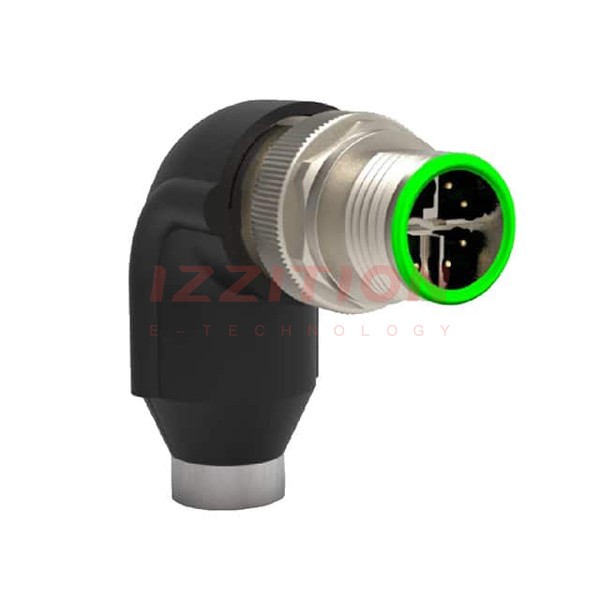

| Part Number | 2350791-1 | 2350791-2 | 2350797-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins | Plug, Female Sockets |
| Number of Positions | 8 | 8 | 8 |
| Shell Size - Insert | M12-8 | M12-8 | M12-8 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | - | - |
| Termination | Crimp | Crimp | Crimp |
| Fastening Type | Threaded | Threaded | Threaded |
| Orientation | X | X | X |
| Primary Material | Metal | Metal | Metal |
| Shell Material | Brass | Brass | Brass |
| Shell Finish | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | Black, Silver | Blue, Silver | Black, Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Strain Relief | Backshell, Strain Relief | Backshell, Strain Relief |
| Shielding | Shielded | Shielded | Shielded |
| Current Rating (Amps) | 0.5A | 0.5A | 0.5A |
| Voltage Rating | 48V | 48V | 48V |
| Cable Opening | 0.323" (8.20mm) | - | 0.323" (8.20mm) |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
