Please send RFQ , we will respond immediately.

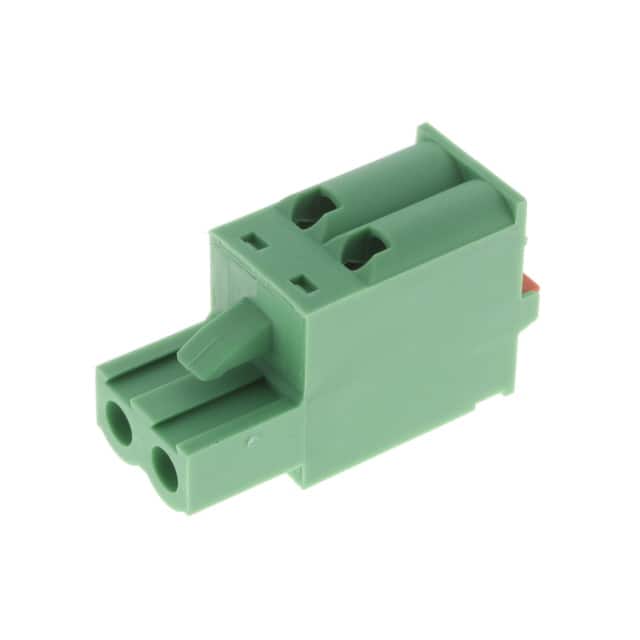

| Part Number | 2350397-2 | 2350397-3 | 2350397-5 | 2350398-2 | 2350397-4 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 2 | 3 | 5 | 2 | 4 |
| Positions Per Level | 2 | 3 | 5 | 2 | 4 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) |
| Header Orientation | - | - | - | - | - |
| Plug Wire Entry | 180° | 180° | 180° | 180° | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - |
| Current - UL | 16 A | 16 A | 16 A | 8 A | 16 A |
| Voltage - UL | 300 V | 300 V | 300 V | 150 V | 300 V |
| Wire Gauge or Range - AWG | 12-26 AWG | 12-26 AWG | 12-26 AWG | 16-24 AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.13-3.31mm² | 0.13-3.31mm² | 0.13-3.31mm² | 0.05-1.31mm² | 0.13-3.31mm² |
| Color | Green | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Tin |
| Features | Push Button Actuated, Retention Latches (Non-Wire Side) | Push Button Actuated, Retention Latches (Non-Wire Side) | Push Button Actuated, Retention Latches (Non-Wire Side) | Push Button Actuated | Push Button Actuated, Retention Latches (Non-Wire Side) |
