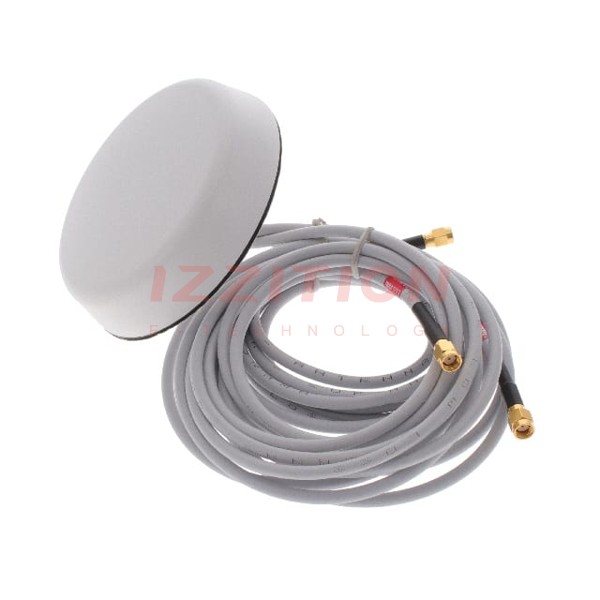

| Part Number | 2344721-2 | 2344721-3 | 2344721-6 | 2344721-5 | 2344721-4 | 2344721-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| RF Family/Standard | Cellular, WiFi | Cellular, WiFi | Cellular, WiFi | Cellular, WiFi | Cellular, WiFi | Cellular, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.44GHz, 5.45GHz | 2.44GHz, 5.45GHz | 2.44GHz, 5.45GHz | 2.44GHz, 5.45GHz | 2.44GHz, 5.45GHz | 2.44GHz, 5.45GHz |
| Frequency Range | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz |
| Antenna Type | Dome | Dome | Dome | Dome | Dome | Dome |
| Number of Bands | 2 | 2 | 2 | 2 | 2 | 2 |
| VSWR | - | - | - | - | - | - |
| Return Loss | - | - | - | - | - | - |
| Gain | 4dBi, 6dBi | 4dBi, 6dBi | 4dBi, 6dBi | 4dBi, 6dBi | 4dBi, 6dBi | 4dBi, 6dBi |
| Power - Max | 10 W | 10 W | 10 W | 10 W | 10 W | 10 W |
| Features | Cable - 2m | Cable - 2m | Cable - 2m | Cable - 2m | Cable - 2m | Cable - 2m |
| Termination | RP-SMA | RP-SMA | N Type | N Type | N Type | RP-SMA |
| Ingress Protection | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Mounting Type | Ceiling Mount | Ceiling Mount | Ceiling Mount | Ceiling Mount | Ceiling Mount | Ceiling Mount |
| Height (Max) | 1.181" (30.00mm) | 1.181" (30.00mm) | 1.181" (30.00mm) | 1.181" (30.00mm) | 1.181" (30.00mm) | 1.181" (30.00mm) |
| Applications | LTE, UMTS, WCDMA, Wi-Fi | LTE, UMTS, WCDMA, Wi-Fi | LTE, UMTS, WCDMA, Wi-Fi | LTE, UMTS, WCDMA, Wi-Fi | LTE, UMTS, WCDMA, Wi-Fi | LTE, UMTS, WCDMA, Wi-Fi |
