Please send RFQ , we will respond immediately.

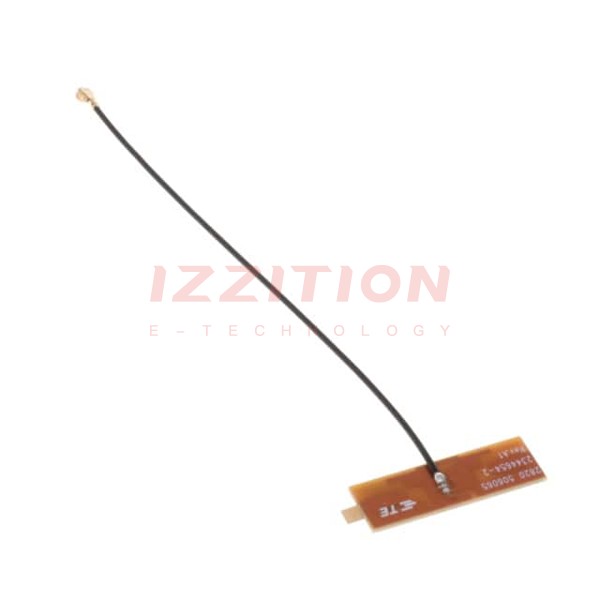

| Part Number | 2344655-4 | 2344656-4 | 2344655-5 | 2344655-7 | 2344655-8 | 2344655-6 | 2344654-4 | 2344655-1 | 2344655-2 | 2344655-3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| RF Family/Standard | - | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi |
| Frequency Group | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | - | 2.45GHz, 5.5125GHz | 2.45GHz, 5.5125GHz | 2.45GHz, 5.5125GHz | 2.45GHz, 5.5125GHz | 2.45GHz, 5.5125GHz | 2.45GHz, 5.5125GHz | 2.45GHz, 5.5125GHz | 2.45GHz, 5.5125GHz | 2.45GHz, 5.5125GHz |
| Frequency Range | - | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz |
| Antenna Type | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace |
| Number of Bands | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| VSWR | - | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Return Loss | - | - | - | - | - | - | - | - | - | - |
| Gain | - | 2dBi | 5dBi | 5dBi | 5dBi | 5dBi | 2dBi | 2dBi | 2dBi | 2dBi |
| Power - Max | - | - | - | - | - | - | - | - | - | - |
| Features | Cable - 200mm | Cable - 200mm | Cable - 50mm | Cable - 150mm | Cable - 200mm | Cable - 100mm | Cable - 200mm | Cable - 50mm | Cable - 100mm | Cable - 150mm |
| Termination | - | U.FL (UMCC), IPEX MHF1 | U.FL (UMCC), IPEX MHF4 | U.FL (UMCC), IPEX MHF4 | U.FL (UMCC), IPEX MHF4 | U.FL (UMCC), IPEX MHF4 | U.FL (UMCC), IPEX MHF1 | U.FL (UMCC), IPEX MHF1 | U.FL (UMCC), IPEX MHF1 | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Adhesive | Adhesive | Adhesive | Adhesive | Adhesive | Adhesive | Adhesive | Adhesive | Adhesive | Adhesive |
| Height (Max) | 0.039" (1.00mm) | 0.007" (0.19mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Applications | General Purpose | Bluetooth, WLAN, Zigbee™ | Bluetooth, WLAN, Zigbee™ | Bluetooth, WLAN, Zigbee™ | Bluetooth, WLAN, Zigbee™ | Bluetooth, WLAN, Zigbee™ | Bluetooth, WLAN, Zigbee™ | Bluetooth, WLAN, Zigbee™ | Bluetooth, WLAN, Zigbee™ | Bluetooth, WLAN, Zigbee™ |
