2338245-2
  • Share:

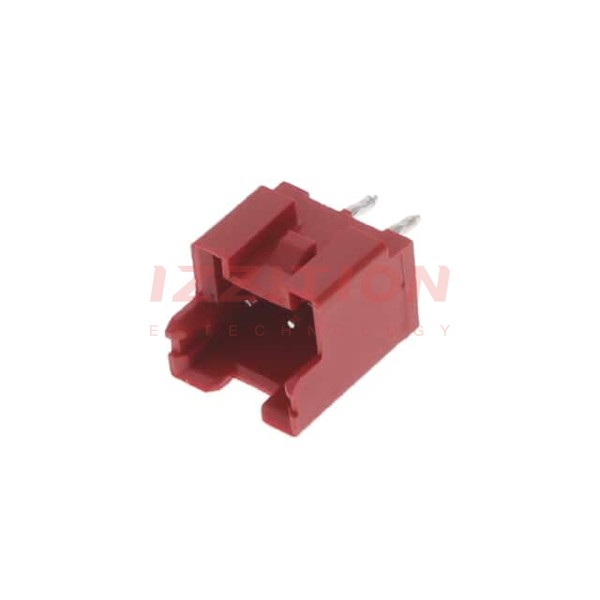

TE Connectivity AMP Connectors 2338245-2

Manufacturer No:
2338245-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2338245-2 Datasheet
ECAD Model:
-
Description:
EP2.5 HDR 2P VERT BOSS RED UL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.142" (3.61mm)
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:-
Insulation Height:0.346" (8.80mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Thermoplastic
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Red
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.38
2,421

Please send RFQ , we will respond immediately.
