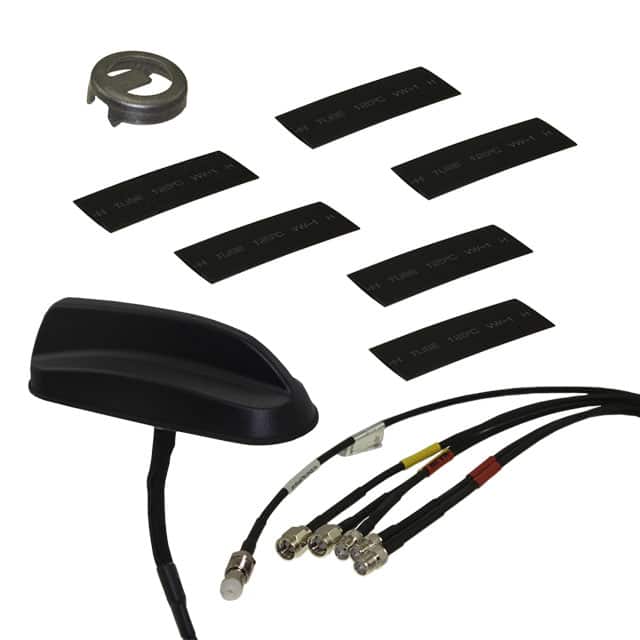

| Part Number | 2332157-4 | 2332157-1 | 2332157-2 | 2332157-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation |
| Frequency Group | Wide Band | Wide Band | Wide Band | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.587GHz, 1.94GHz, 2.4GHz, 3.15GHz, 5.45GHz | 829MHz, 1.94GHz, 3.15GHz | 829MHz, 1.587GHz, 1.94GHz, 3.15GHz | 829MHz, 1.587GHz, 1.94GHz, 2.4GHz, 3.15GHz, 5.45GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 3.8GHz | 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 3.8GHz | ||
| Antenna Type | Dome | Dome | Dome | Dome |
| Number of Bands | 6 | 3 | 4 | 6 |
| VSWR | 2 | 2 | 2 | 2 |
| Return Loss | - | - | - | - |
| Gain | 2dBi, 4dBi, 5dBi, 6dBi | 2dBi, 5dBi | 2dBi, 5dBi | 2dBi, 4dBi, 5dBi, 6dBi |
| Power - Max | 25 W | 25 W | 25 W | 25 W |
| Features | Cable - 300mm, LNA | Cable - 300mm, LNA | Cable - 300mm, LNA | Cable - 300mm, LNA |
| Termination | FME, SMA | FME, SMA | FME, SMA | FME, SMA |
| Ingress Protection | IP66 | IP66 | IP66 | IP66 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Height (Max) | 1.969" (50.00mm) | 1.969" (50.00mm) | 1.969" (50.00mm) | 1.969" (50.00mm) |
| Applications | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN |
