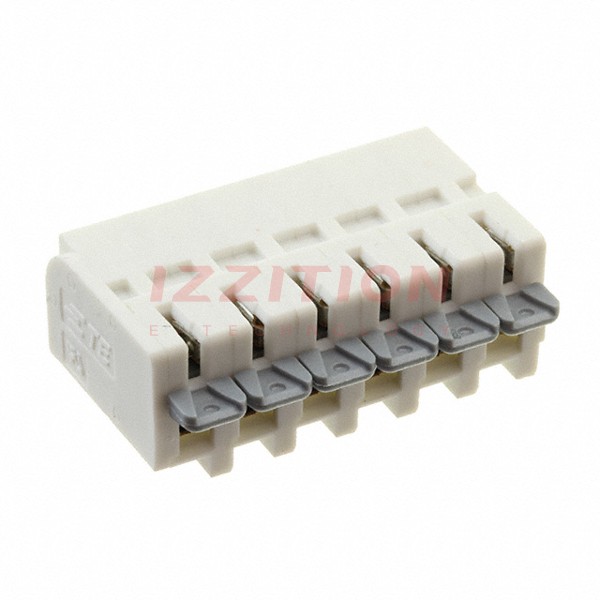

| Part Number | 2319461-6 | 2319461-7 | 2319461-8 | 2319461-2 | 2319461-3 | 2319461-4 | 2319461-5 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Plug, Blade Sockets | Plug, Blade Sockets | Plug, Blade Sockets | Plug, Blade Sockets | Plug, Blade Sockets | Plug, Blade Sockets | Plug, Blade Sockets |
| Number of Positions | 6 | 7 | 8 | 2 | 3 | 4 | 5 |
| Positions Per Level | 6 | 7 | 8 | 2 | 3 | 4 | 5 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Header Orientation | - | - | - | - | - | - | - |
| Plug Wire Entry | 180° | 180° | 180° | 180° | 180° | 180° | 180° |
| Termination Style | Screwless | Screwless | Screwless | Screwless | Screwless | Screwless | Screwless |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Current - IEC | - | - | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - | - | - |
| Current - UL | - | - | - | - | - | - | - |
| Voltage - UL | 250 V | 250 V | 250 V | 250 V | 250 V | 250 V | 250 V |
| Wire Gauge or Range - AWG | 18-24 AWG | 18-24 AWG | 18-24 AWG | 18-24 AWG | 18-24 AWG | 18-24 AWG | 18-24 AWG |
| Wire Gauge or Range - mm² | 0.2-0.82mm² | 0.2-0.82mm² | 0.2-0.82mm² | 0.2-0.82mm² | 0.2-0.82mm² | 0.2-0.82mm² | 0.2-0.82mm² |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Features | Lever Actuated | Lever Actuated | Lever Actuated | Lever Actuated | Lever Actuated | Lever Actuated | Lever Actuated |
