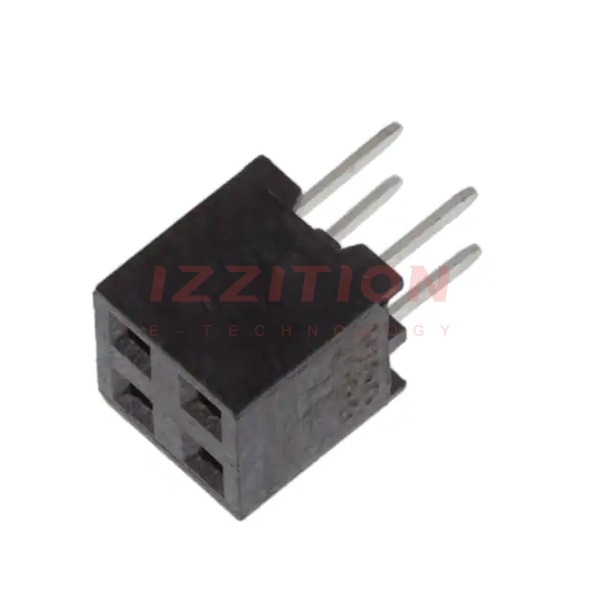

| Part Number | 2314820-4 | 2314820-6 | 2314820-8 | 2314822-4 | 2314826-4 | 2314870-4 | 2314824-4 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board |
| Number of Positions | 4 | 6 | 8 | 4 | 4 | 4 | 4 |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 1 | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | - | 0.079" (2.00mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 3.94µin (0.100µm) |
| Insulation Color | Black | Black | Black | Black | Black | Black | Black |
| Insulation Height | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) |
| Contact Length - Post | 0.106" (2.69mm) | 0.106" (2.69mm) | 0.106" (2.69mm) | 0.106" (2.69mm) | 0.106" (2.69mm) | 0.079" (2.00mm) | 0.106" (2.69mm) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Mated Stacking Heights | - | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - | - |
| Features | - | - | - | - | Pick and Place | Pick and Place | Pick and Place |
| Current Rating (Amps) | 2A | 2A | 2A | 2A | 2A | 2A | 2A |
| Voltage Rating | 125V | 125VAC | 125VAC | 125V | 125V | 125V | 125V |
