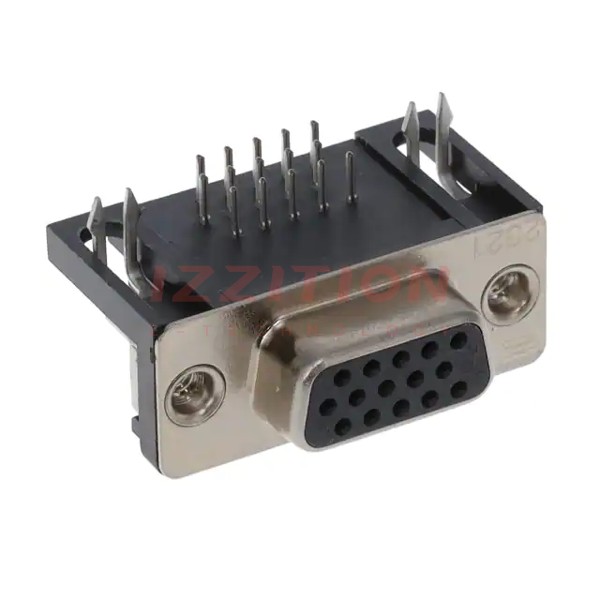

| Part Number | 2311763-3 | 2311763-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Style | D-Sub, High Density | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 15 | 15 |
| Number of Rows | 3 | 3 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) High Density | 1 (DE, E) High Density |
| Contact Type | Signal | Signal |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40) |
| Termination | Solder | Solder |
| Primary Material | - | - |
| Shell Material, Finish | Steel, Nickel Plated | Steel, Nickel Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | - | - |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 3A | 3A |
| Backset Spacing | 0.350" (8.89mm) | 0.350" (8.89mm) |
| Features | Board Lock | Board Lock |
