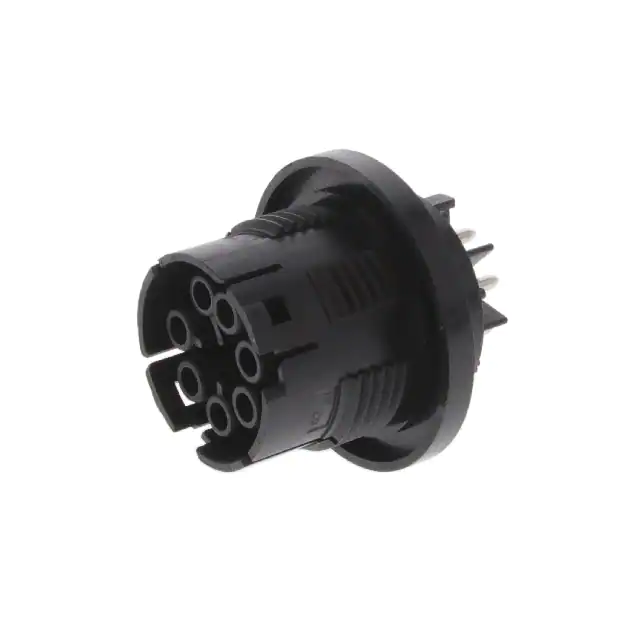

| Part Number | 2307526-2 | 2307526-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 7 (Power) | 7 (Power) |
| Shell Size - Insert | - | - |
| Shell Size, MIL | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole |
| Mounting Feature | - | - |
| Termination | Solder | Solder |
| Fastening Type | Latch Lock | Latch Lock |
| Orientation | B | A |
| Primary Material | Plastic | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell Finish | - | - |
| Contact Finish - Mating | Tin | Tin |
| Color | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | UV Resistant | UV Resistant |
| Shielding | - | - |
| Current Rating (Amps) | - | - |
| Voltage Rating | 400VAC | 400VAC |
| Cable Opening | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
