Please send RFQ , we will respond immediately.

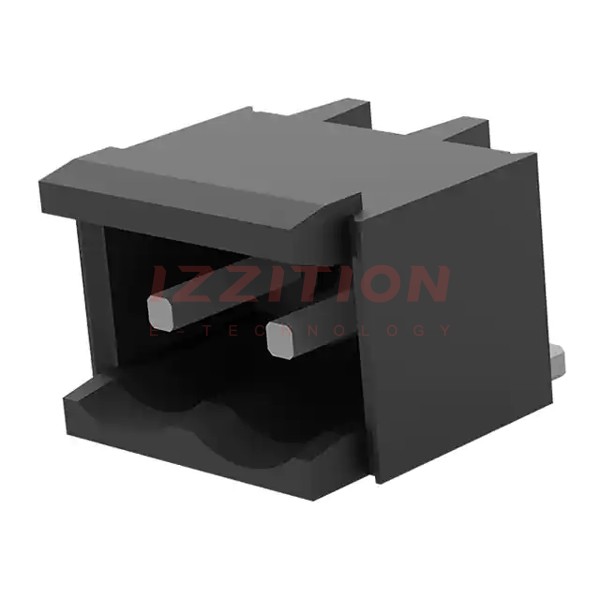

| Part Number | 2305908-2 | 2305908-3 | 2305909-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Blade Pins, Shrouded (4 Side) | Plug, Female Sockets |
| Number of Positions | 2 | 3 | 2 |
| Positions Per Level | 2 | 3 | 2 |
| Number of Levels | 1 | 1 | 1 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Header Orientation | 90°, Right Angle | 90°, Right Angle | - |
| Plug Wire Entry | - | - | 180° |
| Termination Style | Solder | Solder | Screw |
| Mounting Type | Surface Mount | Surface Mount | Free Hanging (In-Line) |
| Current - IEC | - | - | - |
| Voltage - IEC | - | - | - |
| Current - UL | 15 A | 15 A | 15 A |
| Voltage - UL | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | - | - | 12-26 AWG |
| Wire Gauge or Range - mm² | - | - | - |
| Color | Black | Black | Black |
| Operating Temperature | - | - | - |
| Contact Mating Finish | Tin | Tin | Nickel |
| Features | - | - | Retention Latches (Non-Wire Side) |
