Please send RFQ , we will respond immediately.

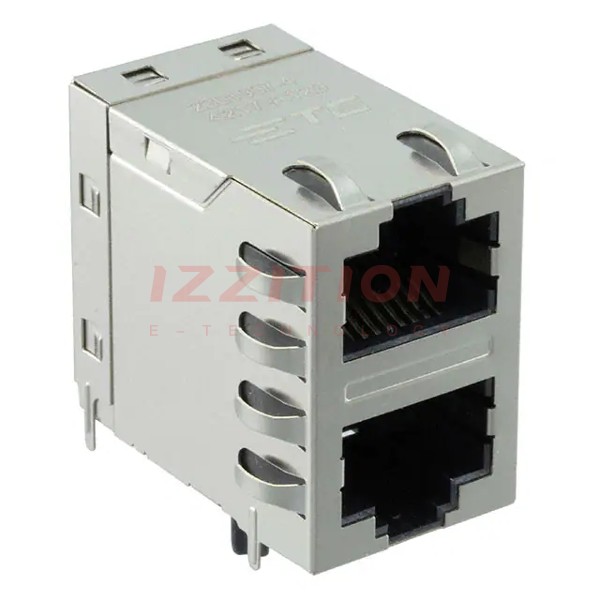

| Part Number | 2301997-4 | 2301997-5 | 2301997-7 | 2301994-4 | 2301995-4 | 2301996-4 | 2301997-2 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | RJ45 | RJ45 | RJ45 | RJ45 | RJ45 | RJ45 | RJ45 |
| Number of Ports | 2 | 2 | 2 | 1 | 1 | 2 | 2 |
| Number of Rows | 2 | 2 | 2 | 1 | 1 | 1 | 2 |
| Applications | 10/100/1000 Base-T, AutoMDIX | 10/100 Base-T, AutoMDIX | 10/100/1000 Base-T, AutoMDIX | 10/100 Base-T, AutoMDIX | 10/100/1000 Base-T, AutoMDIX | 10/100/1000 Base-T, AutoMDIX | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Orientation | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | Vertical | 90° Angle (Right) | 90° Angle (Right) |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Height Above Board | 1.006" (25.55mm) | 1.006" (25.55mm) | 1.015" (25.78mm) | 0.531" (13.49mm) | 0.665" (16.90mm) | 0.531" (13.49mm) | 1.006" (25.55mm) |
| LED Color | Does Not Contain LED | Green - Yellow | Green - Yellow | Does Not Contain LED | Green, Yellow - Green, Yellow | Does Not Contain LED | Does Not Contain LED |
| Number of Cores per Jack | 8 | 4 | 8 | 4 | 8 | 8 | 4 |
| Shielding | Shielded, EMI Finger | Shielded, EMI Finger | Shielded | Shielded, EMI Finger | Shielded | Shielded, EMI Finger | Shielded, EMI Finger |
| Features | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock |
| Tab Direction | Up and Down | Up and Down | Up and Down | Down | Up | Down | Up and Down |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
