Please send RFQ , we will respond immediately.

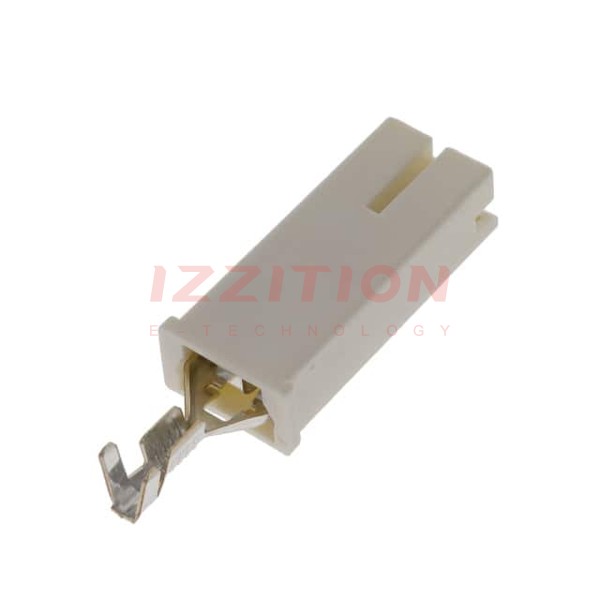

| Part Number | 2299282-1 | 2299286-1 | 2299287-1 | 2299282-3 | 2299282-2 | 2299280-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Angled - 90°, Flag | Standard | Standard | Angled - 90°, Flag |
| Gender | Female | Female | Female | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.031" (0.79mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Tab Length | - | 0.329" (8.35mm) | - | - | - | - |
| Length - Overall | 1.402" (35.60mm) | 1.331" (33.80mm) | - | 1.402" (35.60mm) | 1.402" (35.60mm) | - |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 20-24 AWG | 20-24 AWG | 12-14 AWG | 14-18 AWG | 18-22 AWG |
| Insulation | Mating End Insulated | Mating End Insulated | Mating End Insulated | Mating End Insulated | Mating End Insulated | Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
