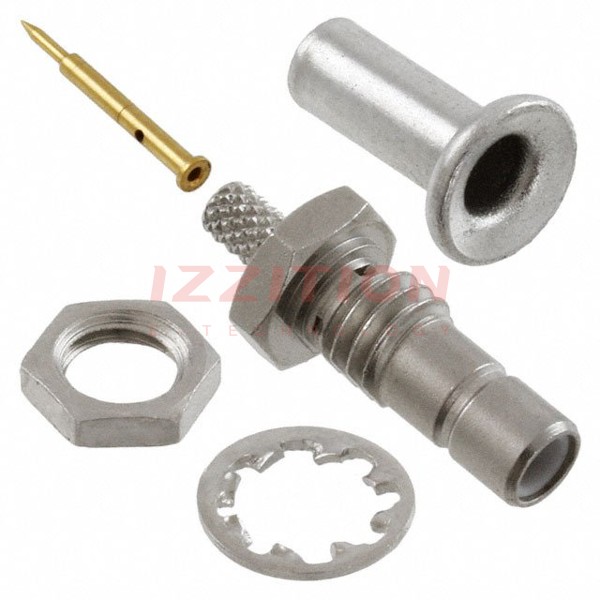

| Part Number | 228217-1 | 228215-1 | 228216-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Style | SMB | SMB | SMB |
| Connector Type | Jack, Male Pin | Receptacle, Male Pin | Receptacle, Male Pin |
| Contact Termination | Crimp | Solder Cup | Solder Cup |
| Shield Termination | Crimp | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | Bulkhead - Rear Side Nut |
| Cable Group | RG-174, 188, 316 | - | - |
| Fastening Type | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | - | Extended Insulation | Extended Insulation |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | - | Beryllium Copper | Brass |
