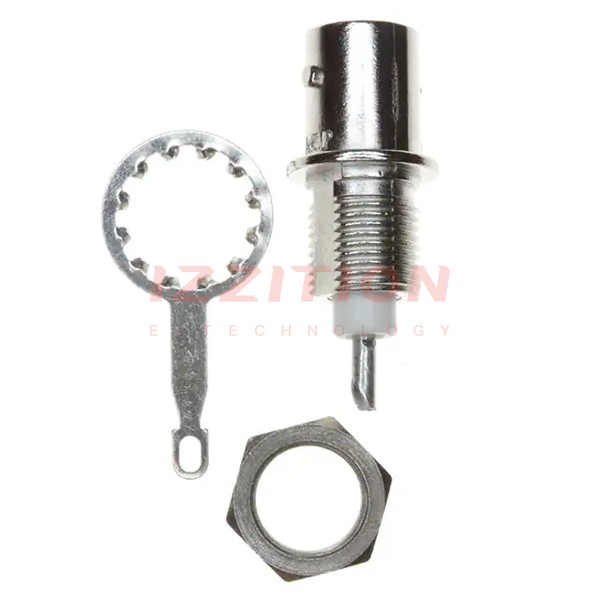

| Part Number | 227169-5 | 227169-7 | 227169-8 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Style | BNC | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Receptacle, Female Socket |
| Contact Termination | Solder Cup | Solder Cup | Solder Cup |
| Shield Termination | Solder Tag | Solder Tag | Solder Tag |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Cable Group | - | - | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | - |
| Features | Extended Insulation | Extended Insulation | Extended Insulation |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
