Please send RFQ , we will respond immediately.

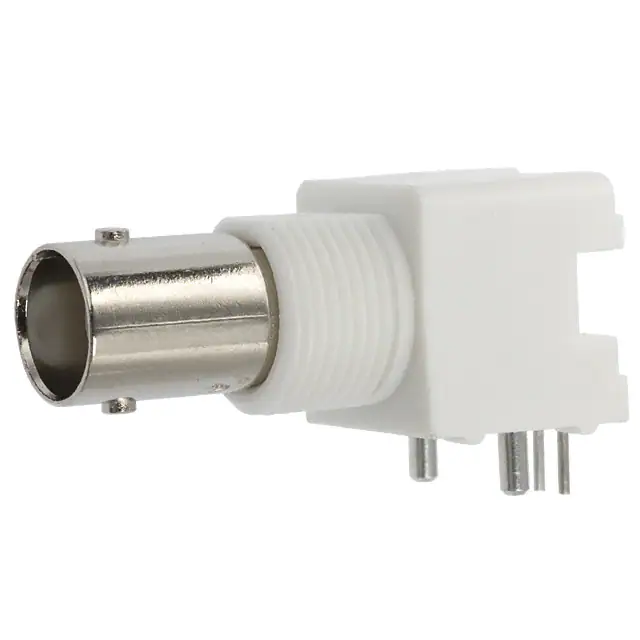

| Part Number | 227161-1 | 227161-6 | 227161-2 | 227661-1 | 227161-9 | 227161-7 | 227161-3 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Connector Style | BNC | BNC | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Shield Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Cable Group | - | - | - | - | - | - | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | Board Guide, Isolated | Board Guide, Isolated | Board Guide, Isolated | - | Board Guide, Isolated | Board Guide, Isolated | Board Guide, Isolated |
| Housing Color | Silver, White | Black, Silver | Black, Silver | Silver | Black, Silver | Silver, White | Silver, White |
| Ingress Protection | - | - | - | - | - | - | - |
| Center Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
