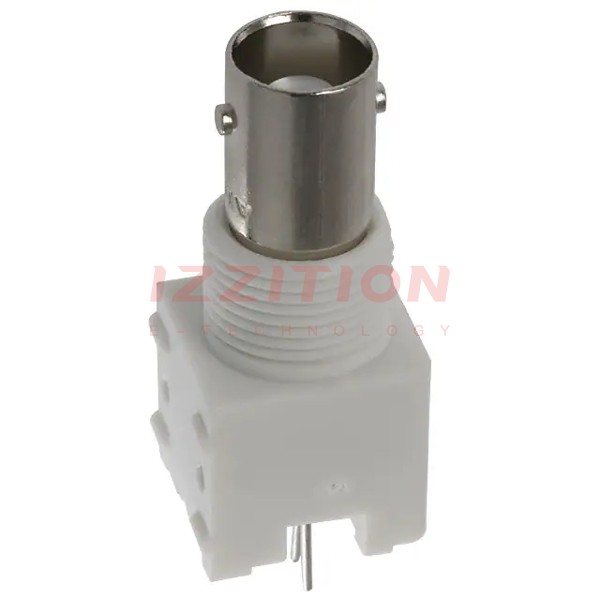

| Part Number | 226993-1 | 226993-2 | 226993-3 | 226990-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Obsolete | Active |
| Connector Style | BNC | BNC | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder | Solder |
| Shield Termination | Solder | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Cable Group | - | - | - | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | Isolated | Isolated | Isolated | Isolated |
| Housing Color | Natural, Silver | Black, Silver | Natural, Silver | Natural, Silver |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
