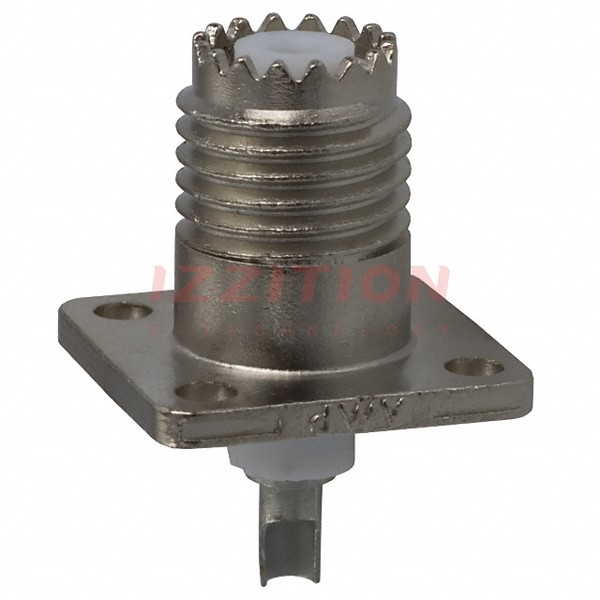

| Part Number | 226601-1 | 226602-1 | 226601-3 | 226600-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Connector Style | UHF, Mini | UHF, Mini | UHF, Mini | UHF, Mini |
| Connector Type | Receptacle, Female Socket | Jack, Female Socket | Receptacle, Female Socket | Plug, Male Pin |
| Contact Termination | Solder Cup | Crimp | Solder Cup | Crimp |
| Shield Termination | Solder | Crimp | Solder | Crimp |
| Impedance | Non-Constant | Non-Constant | Non-Constant | Non-Constant |
| Mounting Type | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Flange | - | Flange | - |
| Cable Group | - | RG-58, 58A, 58B, 58C | - | RG-58, 58A, 58B, 58C |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 2 GHz | 2 GHz | 2 GHz | 2 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | Extended Insulation | - | Extended Insulation | - |
| Housing Color | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Brass | - | Phosphor Bronze | - |
