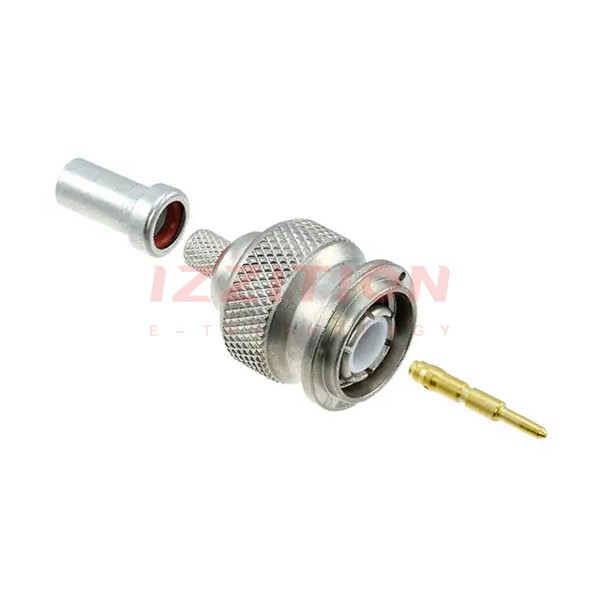

| Part Number | 225555-6 | 225555-7 | 225554-6 | 225555-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Connector Style | TNC | TNC | TNC | TNC |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Crimp | Crimp | Crimp | Crimp |
| Shield Termination | Crimp | Crimp | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - |
| Cable Group | RG-142, 142A, 142B | RG-8, 8A, 213 | RG-142, 142A, 142B | RG-58A, 58C |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 11 GHz | 11 GHz | 11 GHz | 11 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | Weatherproof | - |
| Center Contact Material | Brass | Brass | Beryllium Copper | Brass |
