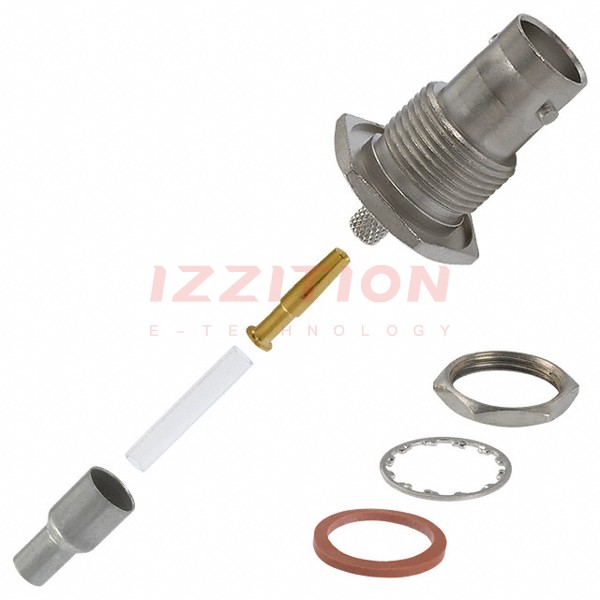

| Part Number | 225398-7 | 225398-8 | 225395-7 | 225398-3 | 225398-6 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Discontinued at Digi-Key |
| Connector Style | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Shield Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | - | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Cable Group | RG-174, 188 | RG-179, 187 | RG-174, 188 | RG-55, 55A, 55B, 223 | RG-142, 142A, 142B |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Brass | Beryllium Copper | Beryllium Copper |
