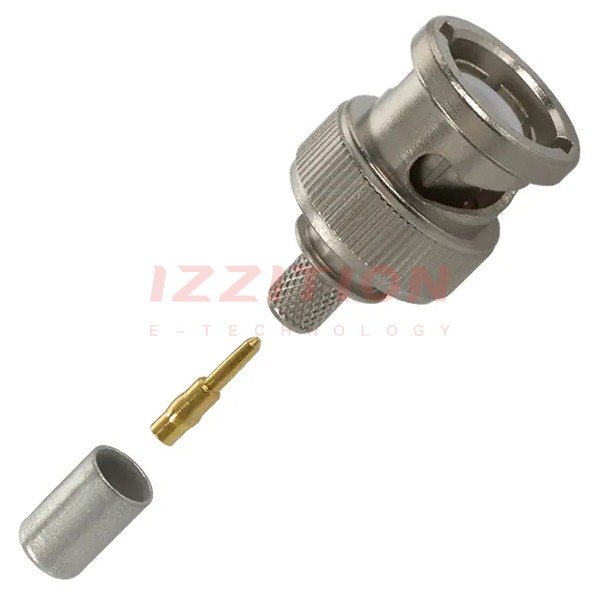

| Part Number | 225395-1 | 225395-2 | 225396-1 | 225395-7 | 225395-3 | 225395-6 | 225395-8 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Connector Style | BNC | BNC | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Shield Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - | - |
| Cable Group | RG-58, 58A, 58B, 58C | RG-59, 59A, 59B, 62, 62A, 62B | RG-58, 58A, 58B, 58C | RG-174, 188 | RG-55, 55A, 55B, 223 | RG-142, 142A, 142B | RG-179, 187 |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - |
| Center Contact Material | Brass | Brass | Beryllium Copper | Brass | Brass | Brass | Brass |
