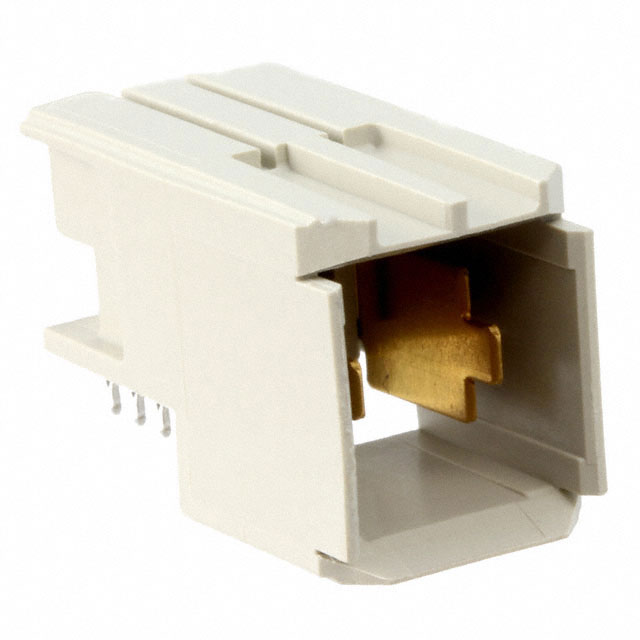

| Part Number | 223975-1 | 223976-1 | 223995-1 | 223965-1 | 223971-1 | 223972-1 | 223974-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Active | Active |
| Connector Usage | Backplane | - | Backplane | Backplane | - | Backplane | Backplane |
| Connector Type | Header, Male Blades | Header, Male Blades | Receptacle, Female Blade Sockets | Header, Male Blades | Header, Male Blades | Header, Male Blades | Header, Male Blades |
| Connector Style | Blade Power | Blade Power | Blade Power | Blade Power | Blade Power | Blade Power | Blade Power |
| Number of Positions | 3 | 3 | 4 | 3 | 3 | 3 | 3 |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Pitch | - | - | - | - | - | - | - |
| Number of Rows | 1 | - | 1 | 1 | - | 1 | 1 |
| Number of Columns | - | - | - | - | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 3 Power | 3 Power | 4 Power | 3 Power | 3 Power | 3 Power | 3 Power |
| Features | Board Guide | Board Guide | - | Board Guide | Board Guide | Board Guide | Board Guide |
| Contact Finish | Gold or Gold-Palladium | Gold | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness | - | 50.0µin (1.27µm) | - | - | 50.0µin (1.27µm) | - | - |
| Color | Gray | Gray | Gray | Gray | Gray | Gray | Gray |
