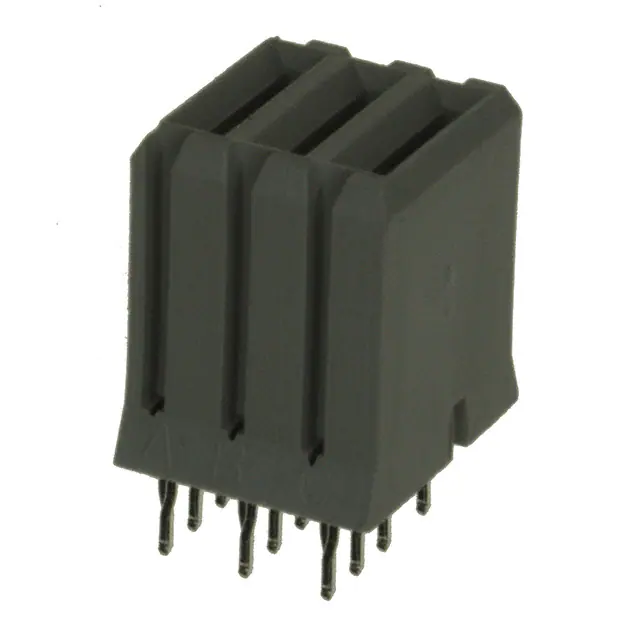

| Part Number | 223955-2 | 223995-2 | 223055-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete |
| Connector Usage | Backplane | Backplane | - |
| Connector Type | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets | Header, Male Pins |
| Connector Style | Blade Power | Blade Power | Futurebus |
| Number of Positions | 3 | 5 | 60 |
| Number of Positions Loaded | All | All | All |
| Pitch | - | - | 0.079" (2.00mm) |
| Number of Rows | 1 | 1 | 5 |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 3 Power | 5 Power | - |
| Features | - | - | - |
| Contact Finish | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold |
| Contact Finish Thickness | - | - | 30.0µin (0.76µm) |
| Color | Gray | Gray | Natural |
