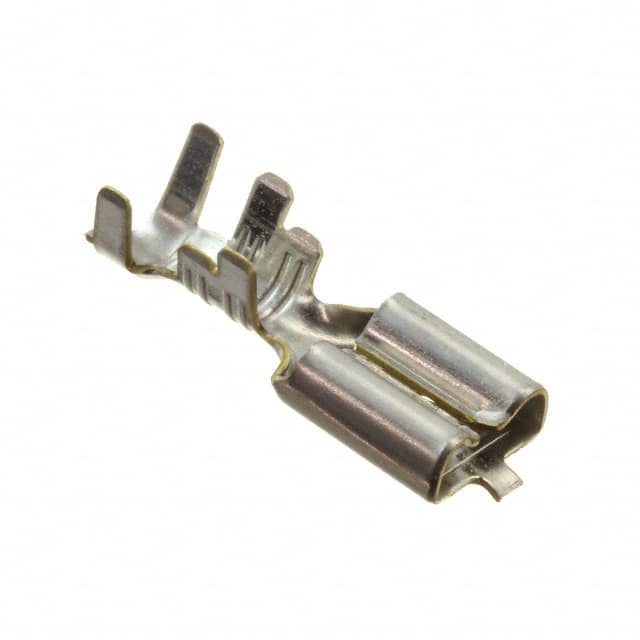

| Part Number | 2238173-3 | 2238174-3 | 2238171-3 | 2238172-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Angled - 90°, Flag | Angled - 90°, Flag |
| Gender | Female | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.250" (6.35mm) | - | - |
| Length - Overall | 0.839" (21.30mm) | 0.725" (18.42mm) | - | - |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 12-22 AWG | 14-24 AWG | 12-22 AWG | 14-24 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin |
