2236454-1
  • Share:

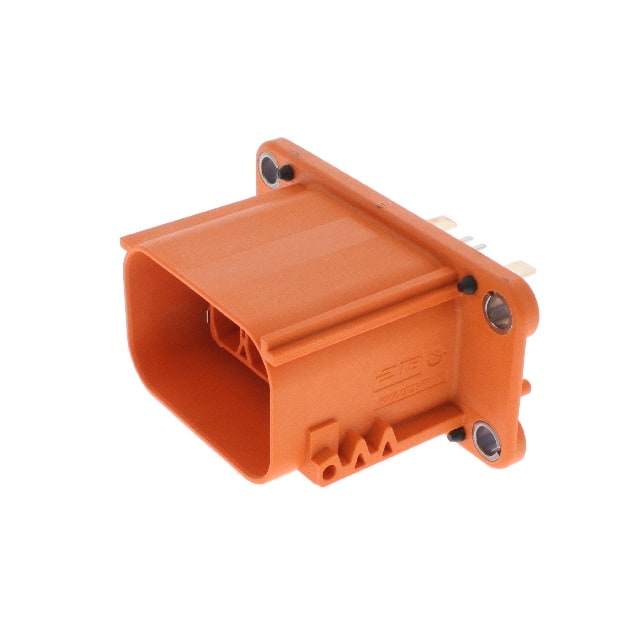

TE Connectivity AMP Connectors 2236454-1

Manufacturer No:
2236454-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2236454-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 7POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade; Male Pin
Pitch - Mating:-
Number of Positions:7
Number of Rows:2
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Panel Mount, Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:1.795" (45.60mm)
Contact Shape:-
Contact Finish - Mating:Silver
Contact Finish Thickness - Mating:-
Contact Finish - Post:Silver
Contact Material:Copper Zinc
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Guide, Mounting Flange
Operating Temperature:-40°C ~ 140°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Orange
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$28.22
19

Please send RFQ , we will respond immediately.
