2229490-3
  • Share:

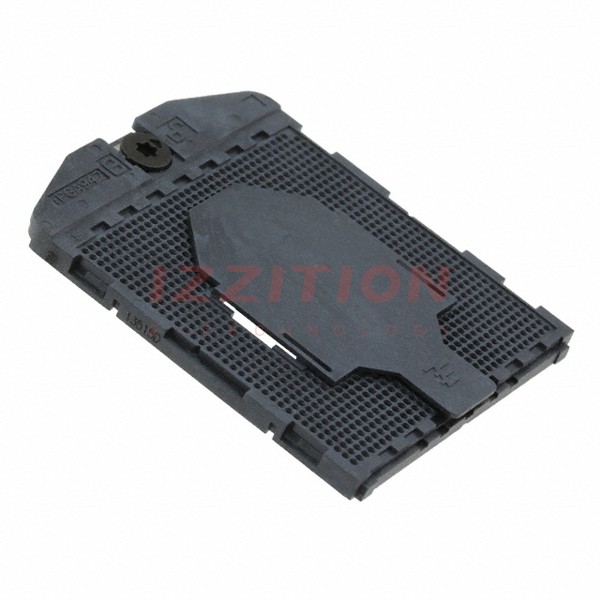

TE Connectivity AMP Connectors 2229490-3

Manufacturer No:
2229490-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
2229490-3 Datasheet
ECAD Model:
-
Description:
CONN SOCKET PGA ZIF 947POS GOLD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:PGA, ZIF (ZIP)
Number of Positions or Pins (Grid):947 (35 x 36)
Pitch - Mating:0.039" (1.00mm)
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Material - Mating:Copper Alloy
Mounting Type:Surface Mount
Features:Open Frame
Termination:Solder
Pitch - Post:0.039" (1.00mm)
Contact Finish - Post:Tin-Lead
Contact Finish Thickness - Post:15.0µin (0.38µm)
Contact Material - Post:Copper Alloy
Housing Material:Thermoplastic
Operating Temperature:-
0 Remaining View Similar

In Stock

$9.76
41

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2229490-3 2229490-2
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active
Type PGA, ZIF (ZIP) PGA, ZIF (ZIP)
Number of Positions or Pins (Grid) 947 (35 x 36) 947 (35 x 36)
Pitch - Mating 0.039" (1.00mm) 0.039" (1.00mm)
Contact Finish - Mating Gold Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm) 15.0µin (0.38µm)
Contact Material - Mating Copper Alloy Copper Alloy
Mounting Type Surface Mount Surface Mount
Features Open Frame Open Frame
Termination Solder Solder
Pitch - Post 0.039" (1.00mm) 0.039" (1.00mm)
Contact Finish - Post Tin-Lead Tin-Lead
Contact Finish Thickness - Post 15.0µin (0.38µm) 15.0µin (0.38µm)
Contact Material - Post Copper Alloy Copper Alloy
Housing Material Thermoplastic Thermoplastic
Operating Temperature - -
