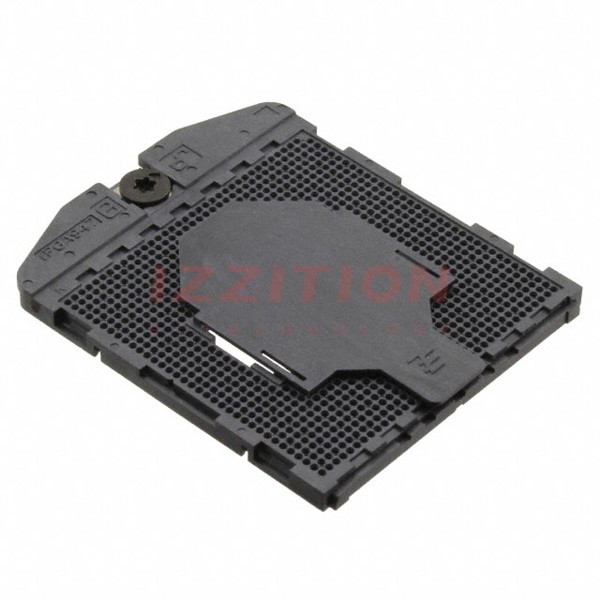

| Part Number | 2229490-2 | 2229490-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Type | PGA, ZIF (ZIP) | PGA, ZIF (ZIP) |
| Number of Positions or Pins (Grid) | 947 (35 x 36) | 947 (35 x 36) |
| Pitch - Mating | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | 15.0µin (0.38µm) |
| Contact Material - Mating | Copper Alloy | Copper Alloy |
| Mounting Type | Surface Mount | Surface Mount |
| Features | Open Frame | Open Frame |
| Termination | Solder | Solder |
| Pitch - Post | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Post | 15.0µin (0.38µm) | 15.0µin (0.38µm) |
| Contact Material - Post | Copper Alloy | Copper Alloy |
| Housing Material | Thermoplastic | Thermoplastic |
| Operating Temperature | - | - |
