Please send RFQ , we will respond immediately.

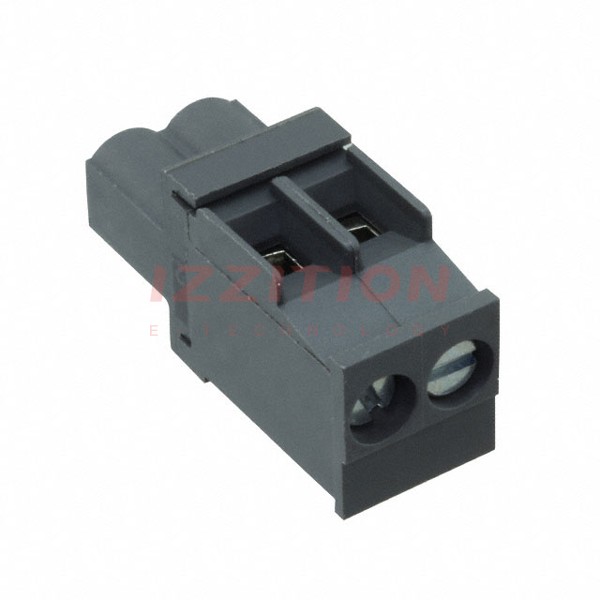

| Part Number | 2213934-2 | 2213936-2 | 2213935-2 | 2213934-3 | 2213932-2 | 2213933-2 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 2 | 2 | 2 | 3 | 2 | 2 |
| Positions Per Level | 2 | 2 | 2 | 3 | 2 | 2 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Header Orientation | - | - | - | - | 90°, Right Angle | 90°, Right Angle |
| Plug Wire Entry | 270° | 180° | 90° | 270° | - | - |
| Termination Style | Screw | Screw | Screw | Screw | Solder | Solder |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Surface Mount | Surface Mount |
| Current - IEC | - | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - | - |
| Current - UL | 15 A | 8 A | 15 A | 15 A | 8 A | 8 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | 12-26 AWG | 16-30 AWG | 12-26 AWG | 12-26 AWG | - | - |
| Wire Gauge or Range - mm² | - | - | - | - | - | - |
| Color | Black | Gray | Black | Black | Black | Black |
| Operating Temperature | - | - | - | - | - | - |
| Contact Mating Finish | - | - | - | - | Tin | Tin |
| Features | Retention Latches (Non-Wire Side) | - | Retention Latches (Wire Side) | Retention Latches (Non-Wire Side) | - | Mounting Flange |
