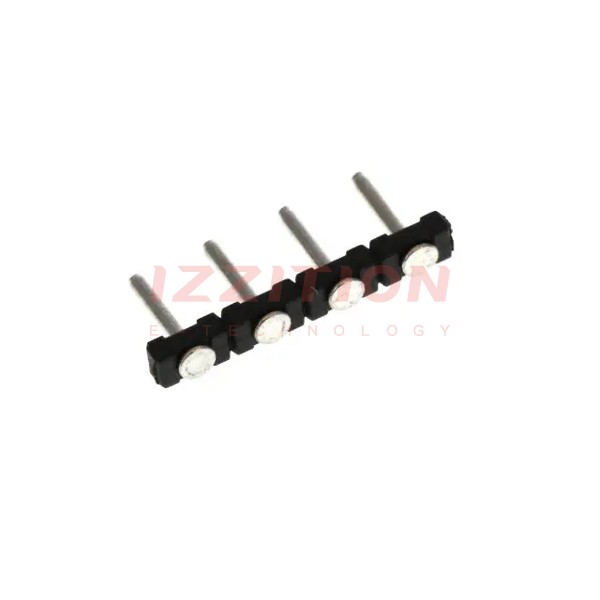

| Part Number | 2213865-4 | 2213867-4 | 2213865-2 | 2213865-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins |
| Number of Positions | 4 | 4 | 2 | 3 |
| Positions Per Level | 4 | 4 | 2 | 3 |
| Number of Levels | 1 | 1 | 1 | 1 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Header Orientation | Vertical | Vertical | Vertical | Vertical |
| Plug Wire Entry | - | - | - | - |
| Termination Style | Solder | Solder | Solder | Solder |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Current - IEC | - | - | - | - |
| Voltage - IEC | - | - | - | - |
| Current - UL | 10 A | 10 A | 10 A | 10 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | - | - | - | - |
| Wire Gauge or Range - mm² | - | - | - | - |
| Color | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin |
| Features | - | - | - | - |
