Please send RFQ , we will respond immediately.

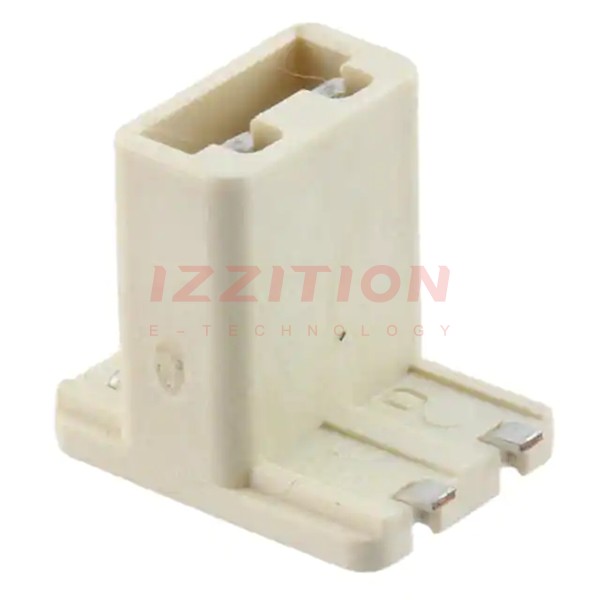

| Part Number | 2213188-2 | 2213188-3 | 2213189-2 | 2213188-4 | 2213188-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Style | Board to Card Edge | Board to Card Edge | Board to Cable/Wire | Board to Card Edge | Board to Card Edge |
| Connector Type | Receptacle | Receptacle | Receptacle, Poke-In Wire | Receptacle | Receptacle |
| Number of Positions | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Surface Mount, Bottom Entry, Through Board | Surface Mount, Bottom Entry, Through Board | Surface Mount, Bottom Entry, Through Board | Surface Mount, Bottom Entry, Through Board | Surface Mount, Bottom Entry, Through Board |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Pitch | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) |
| Fastening Type | - | - | - | - | - |
| Features | 1.60mm Thick PCB, Solder Retention | 1.00mm Thick PCB, Cover, Solder Retention | Solder Retention | 1.60mm Thick PCB, Cover, Solder Retention | 1.00mm Thick PCB, Solder Retention |
| Housing Color | Natural | Natural | Natural | Natural | Natural |
| Wire Gauge | - | - | 24-26 AWG | - | - |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
| Housing Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Operating Temperature | -20°C ~ 130°C | -20°C ~ 130°C | -20°C ~ 130°C | -20°C ~ 130°C | -20°C ~ 130°C |
