Please send RFQ , we will respond immediately.

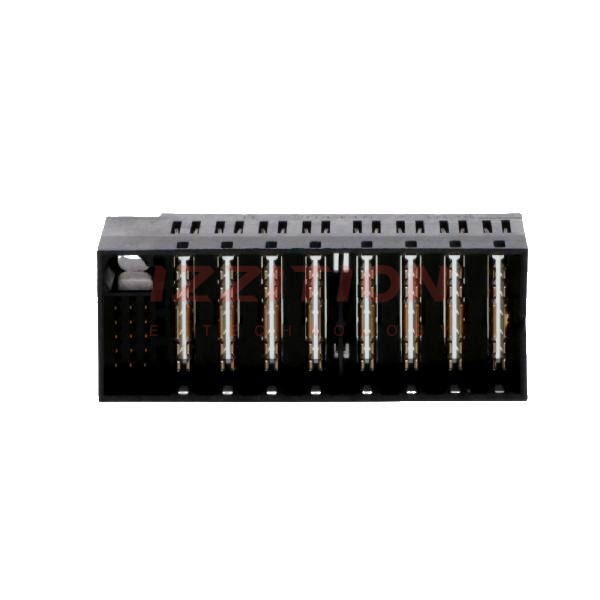

| Part Number | 2204446-2 | 2204446-3 | 2204446-6 | 2204426-2 | 2204440-2 | 2204442-2 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Usage | - | - | - | - | - | - |
| Connector Type | Header, Male Pins and Blades | Header, Male Pins and Blades | Plug, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Plug, Male Pins and Blades | Plug, Male Pins and Blades |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 23 | 17 | 19 | 17 | 42 | 40 |
| Number of Positions Loaded | All | All | All | All | All | All |
| Pitch | - | - | - | - | - | - |
| Number of Rows | - | - | - | - | - | - |
| Number of Columns | - | - | - | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 15 Signal, 8 Power | 15 Signal, 2 Power | 10 Signal, 9 Power | - | 30 Signal, 12 Power | 30 Signal, 10 Power |
| Features | Board Guide | Board Guide, Mating Guide | Board Guide | Board Guide, Guide Pin | Board Guide | Board Guide |
| Contact Finish | Gold or Gold-Palladium | - | Gold or Gold-Palladium | - | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness | - | - | - | - | - | - |
| Color | Black | Black | Black | Black | Black | Black |
