Please send RFQ , we will respond immediately.

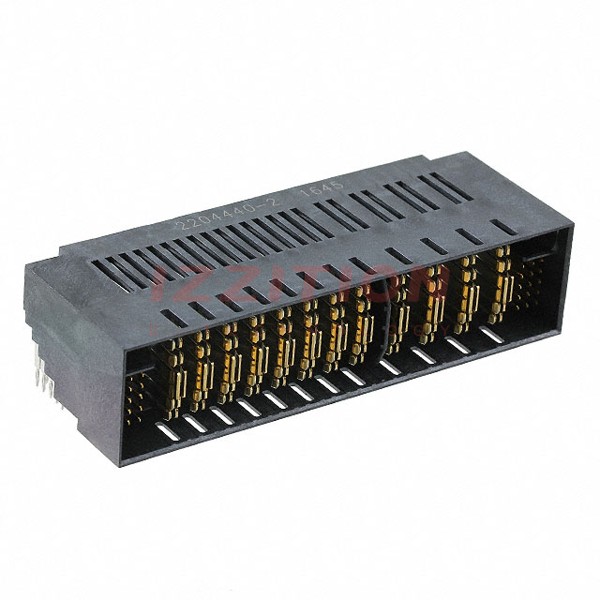

| Part Number | 2204440-2 | 2204440-7 | 2204446-2 | 2204440-8 | 2204442-2 | 2204440-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Usage | - | - | - | - | - | - |
| Connector Type | Plug, Male Pins and Blades | Plug, Male Pins and Blades | Header, Male Pins and Blades | Header, Male Pins and Blades | Plug, Male Pins and Blades | Plug, Male Pins and Blades |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 42 | 30 | 23 | 36 | 40 | 34 |
| Number of Positions Loaded | All | All | All | All | All | All |
| Pitch | - | - | - | - | - | - |
| Number of Rows | - | - | - | 5 | - | - |
| Number of Columns | - | - | - | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 30 Signal, 12 Power | 27 Signal, 3 Power | 15 Signal, 8 Power | 30 Signal, 6 Power | 30 Signal, 10 Power | 30 Signal, 4 Power |
| Features | Board Guide | Board Guide | Board Guide | Board Guide, Mating Guide | Board Guide | Board Guide |
| Contact Finish | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium | - | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness | - | - | - | - | - | - |
| Color | Black | Black | Black | Black | Black | Black |
