Please send RFQ , we will respond immediately.

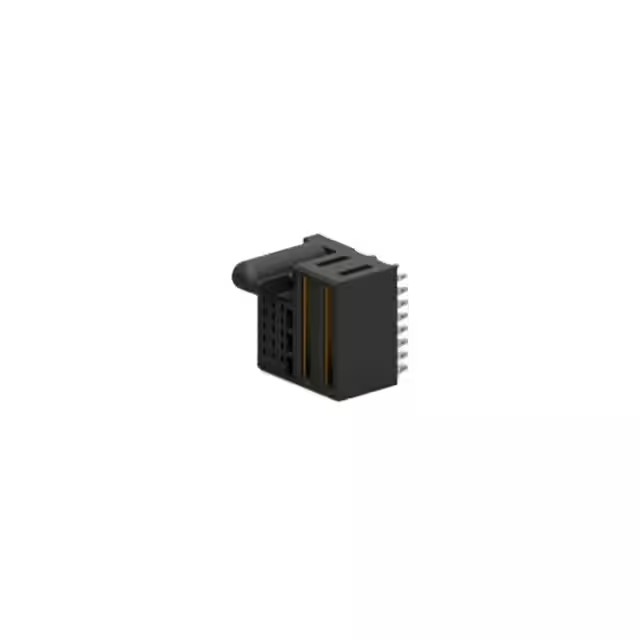

| Part Number | 2204426-2 | 2204446-2 | 2204422-2 | 2204426-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | - | - | - | - |
| Connector Type | Receptacle, Female Sockets and Blade Sockets | Header, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Blade Sockets |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 17 | 23 | 40 | 23 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | - | - | - | 0.079" (2.00mm) |
| Number of Rows | - | - | - | 5 |
| Number of Columns | - | - | - | - |
| Mounting Type | Through Hole | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | 15 Signal, 8 Power | 30 Signal, 10 Power | 15 Signal, 8 Power |
| Features | Board Guide, Guide Pin | Board Guide | Board Guide | Guide Pin |
| Contact Finish | - | Gold or Gold-Palladium | Gold or Gold-Palladium | - |
| Contact Finish Thickness | - | - | - | - |
| Color | Black | Black | Black | Black |
