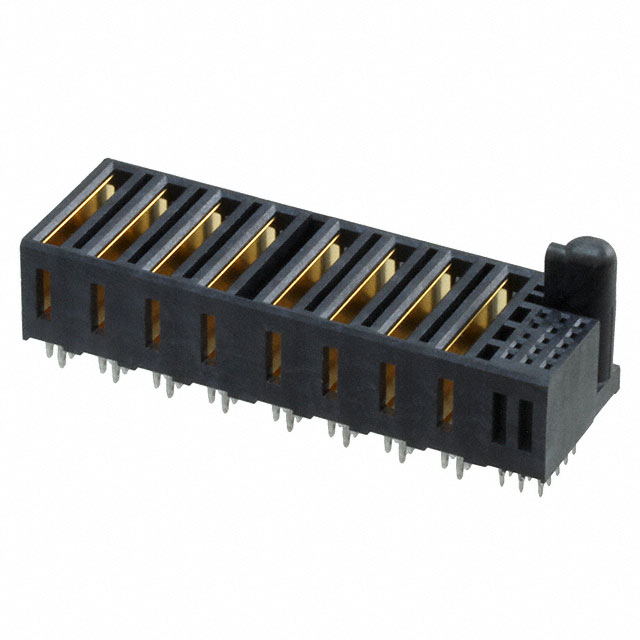

| Part Number | 2204426-1 | 2204426-2 | 2204456-1 | 2204406-1 | 2204420-1 | 2204423-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Usage | - | - | - | - | - | - |
| Connector Type | Receptacle, Female Blade Sockets | Receptacle, Female Sockets and Blade Sockets | Plug, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Blade Sockets |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 23 | 17 | 24 | 14 | 34 | 2 |
| Number of Positions Loaded | All | All | All | All | All | All |
| Pitch | 0.079" (2.00mm) | - | - | - | - | - |
| Number of Rows | 5 | - | - | - | - | - |
| Number of Columns | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Solder | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 15 Signal, 8 Power | - | 20 Signal, 4 Power | 10 Signal, 4 Power | 30 Signal, 4 Power | 2 Power |
| Features | Guide Pin | Board Guide, Guide Pin | Board Guide | Guide Pin | Board Guide, Guide Pin | - |
| Contact Finish | - | - | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness | - | - | - | - | 3.00µin (0.076µm) | - |
| Color | Black | Black | Black | Black | Black | Black |
