Please send RFQ , we will respond immediately.

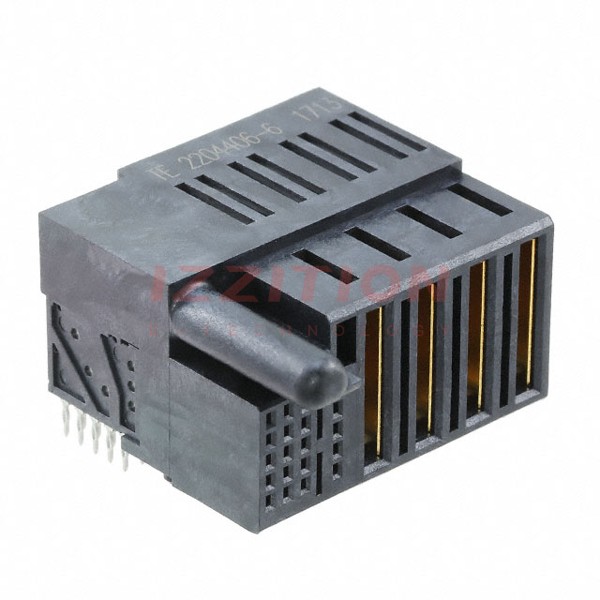

| Part Number | 2204406-6 | 2204446-6 | 2204406-1 | 2204406-5 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | - | - | - | - |
| Connector Type | Receptacle, Female Sockets and Blade Sockets | Plug, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 24 | 19 | 14 | 19 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | - | - | - | - |
| Number of Rows | - | - | - | - |
| Number of Columns | - | - | - | - |
| Mounting Type | Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 20 Signal, 4 Power | 10 Signal, 9 Power | 10 Signal, 4 Power | 10 Signal, 9 Power |
| Features | Guide Pin | Board Guide | Guide Pin | Guide Pin |
| Contact Finish | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness | - | - | - | - |
| Color | Black | Black | Black | Black |
