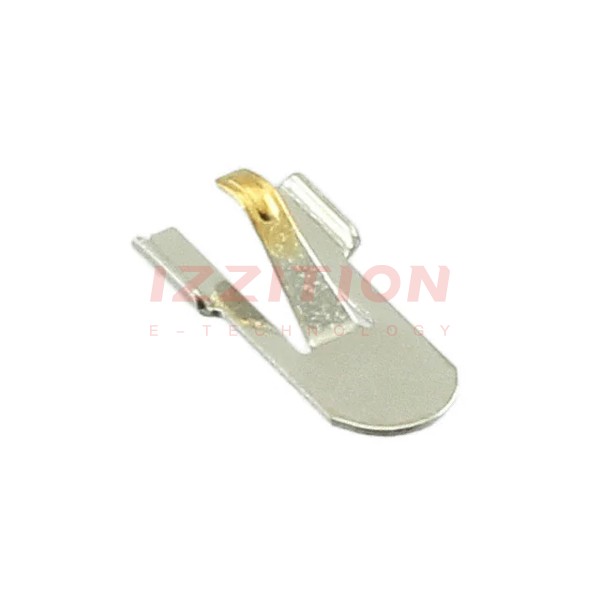

| Part Number | 2199248-4 | 2199248-6 | 2199249-4 | 2199248-5 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Type | Shield Finger, Pre-Loaded | Shield Finger, Pre-Loaded | Shield Finger, Pre-Loaded | Shield Finger, Pre-Loaded |
| Shape | - | - | - | - |
| Width | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.059" (1.50mm) | 0.094" (2.40mm) |
| Length | 0.154" (3.90mm) | 0.154" (3.90mm) | 0.126" (3.20mm) | 0.154" (3.90mm) |
| Height | 0.039" (1.00mm) | 0.063" (1.60mm) | 0.091" (2.30mm) | 0.051" (1.30mm) |
| Material | Stainless Steel | Stainless Steel | Phosphor Bronze | Stainless Steel |
| Plating | Gold | Gold | Gold | Gold |
| Plating - Thickness | 19.685µin (0.50µm) | 19.685µin (0.50µm) | 19.685µin (0.50µm) | 19.685µin (0.50µm) |
| Attachment Method | Solder | Solder | Solder | Solder |
| Operating Temperature | - | - | - | - |
