Please send RFQ , we will respond immediately.

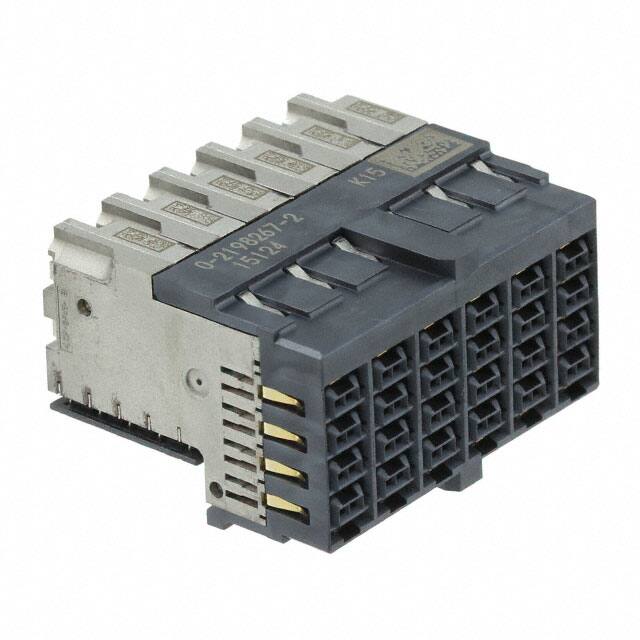

| Part Number | 2198267-2 | 2198268-2 | 2198263-2 | 2198264-2 | 2198265-2 | 2198266-2 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Discontinued at Digi-Key | Active | Active | Active |
| Connector Usage | Backplane | Backplane | Backplane | Backplane | Backplane | Backplane |
| Connector Type | Header, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Male Pins | Receptacle, Female Sockets and Blade Sockets |
| Connector Style | Dual Beam, Center | Dual Beam, Center | Dual Beam, Center | Dual Beam, Center | Dual Beam, Center | Dual Beam, Center |
| Number of Positions | 48 | 64 | 96 | 128 | 72 | 96 |
| Number of Positions Loaded | All | All | All | All | All | All |
| Pitch | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) |
| Number of Rows | 4 | 4 | 8 | 8 | 6 | 6 |
| Number of Columns | 6 | 8 | 6 | 6 | 6 | 8 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Mount | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 24 Differential Pairs | 32 Differential Pairs | 48 Differential Pairs | 48 Differential Pairs | 36 Differential Pairs | 48 Differential Pairs |
| Features | - | - | - | - | - | - |
| Contact Finish | - | - | - | - | - | - |
| Contact Finish Thickness | - | - | - | - | - | - |
| Color | Black | Black | Black | Black | Black | Black |
