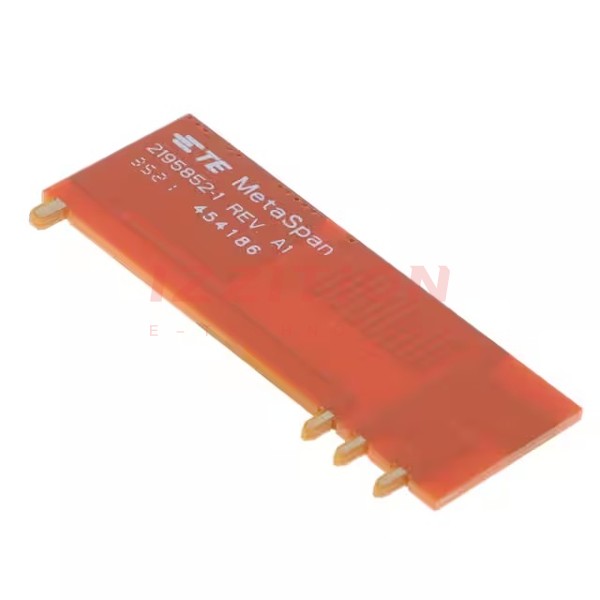

| Part Number | 2195852-1 | 2195851-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| RF Family/Standard | Cellular, Navigation | Cellular, Navigation |
| Frequency Group | Wide Band | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.525GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz | 829MHz, 1.525GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz |
| Frequency Range | ||
| Antenna Type | PCB Trace | PCB Trace |
| Number of Bands | 6 | 7 |
| VSWR | 3 | 3 |
| Return Loss | - | - |
| Gain | 4.5dBi | 4.6dBi |
| Power - Max | - | - |
| Features | - | - |
| Termination | PCB | PCB |
| Ingress Protection | - | - |
| Mounting Type | Through Hole | Through Hole |
| Height (Max) | 0.062" (1.58mm) | 0.062" (1.58mm) |
| Applications | 4G, LTE, GNSS | 4G, LTE, GNSS |
