Please send RFQ , we will respond immediately.

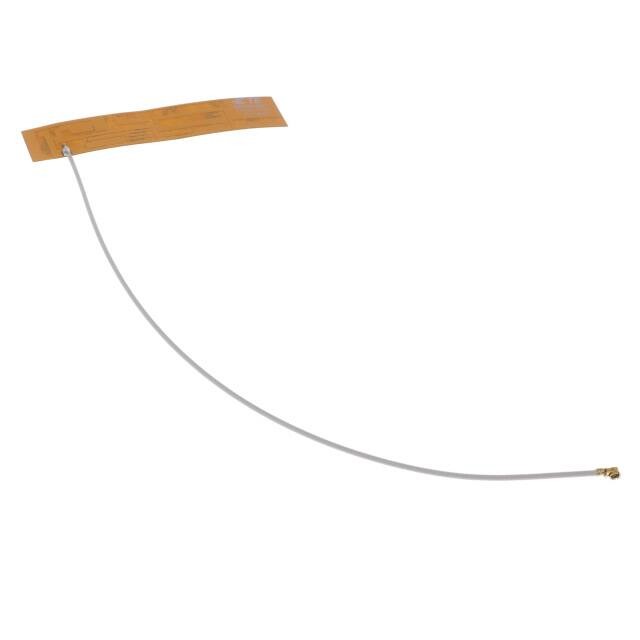

| Part Number | 2195846-4 | 2195846-5 | 2195846-6 | 2195846-7 | 2195846-8 | 2195846-1 | 2195846-2 | 2195846-3 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| RF Family/Standard | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation |
| Frequency Group | Wide Band | Wide Band | Wide Band | Wide Band | Wide Band | Wide Band | Wide Band | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz |
| Frequency Range | ||||||||
| Antenna Type | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace |
| Number of Bands | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| VSWR | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Return Loss | - | - | - | - | - | - | - | - |
| Gain | 4.99dBi | 4.99dBi | 4.99dBi | 4.99dBi | 4.99dBi | 4.99dBi | 4.99dBi | 4.99dBi |
| Power - Max | - | - | - | - | - | - | - | - |
| Features | Cable - 200mm | Cable - 50mm | Cable - 100mm | Cable - 150mm | Cable - 200mm | Cable - 50mm | Cable - 100mm | Cable - 150mm |
| Termination | MHF | MHF4L | MHF4L | MHF4L | MHF4L | MHF | MHF | MHF |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Mounting Type | Adhesive, Chassis Mount | Adhesive, Chassis Mount | Adhesive, Chassis Mount | Adhesive, Chassis Mount | Adhesive, Chassis Mount | Adhesive, Chassis Mount | Adhesive, Chassis Mount | Adhesive, Chassis Mount |
| Height (Max) | - | - | - | - | - | - | - | - |
| Applications | 4G, LTE, GNSS | 4G, LTE, GNSS | 4G, LTE, GNSS | 4G, LTE, GNSS | 4G, LTE, GNSS | 4G, LTE, GNSS | 4G, LTE, GNSS | 4G, LTE, GNSS |
