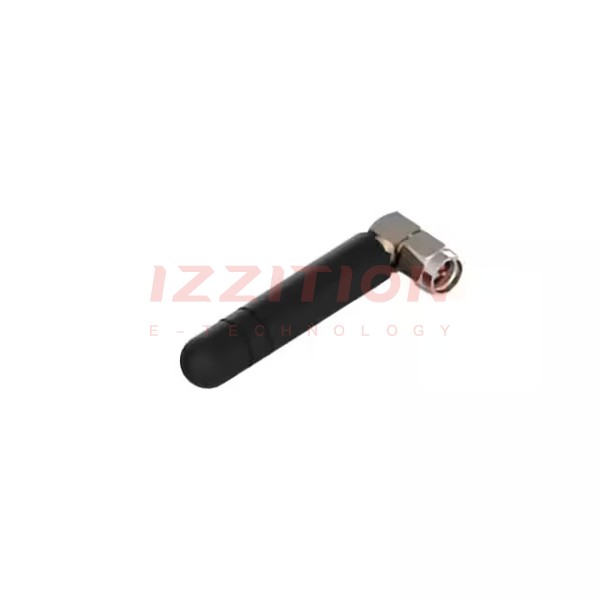

| Part Number | 2195775-1 | 2195765-1 | 2195771-1 | 2195774-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Obsolete |
| RF Family/Standard | - | 802.15.4, Bluetooth, Navigation, WiFi | 802.15.4, Bluetooth, Cellular | - |
| Frequency Group | - | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | Wide Band | - |
| Frequency (Center/Band) | - | 1.575GHz, 2.45GHz | 829MHz, 2.205GHz, 3.6GHz | - |
| Frequency Range | - | 1.57GHz ~ 1.58GHz , 2.4GHz ~ 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz | - |
| Antenna Type | - | Chip | Dome | - |
| Number of Bands | - | 2 | 3 | - |
| VSWR | - | - | 1.4, 1.5, 2.2 | - |
| Return Loss | - | -10dB | - | - |
| Gain | - | 0.69dBi, 0.97dBi | 3.2dBi, 5.9dBi, 7dBi, 5.5dBi | - |
| Power - Max | - | - | 150 W | - |
| Features | - | - | Cable - 320mm | - |
| Termination | - | Solder | 4.3/10 - Female | - |
| Ingress Protection | - | - | IP65 | - |
| Mounting Type | - | Surface Mount | Ceiling Mount | - |
| Height (Max) | - | 0.020" (0.50mm) | 3.622" (92.00mm) | - |
| Applications | - | Bluetooth, GNSS, Wi-Fi, Zigbee™ | 2G, 3G, 4G, 5G, Bluetooth, WLAN, Zigbee™ | - |
