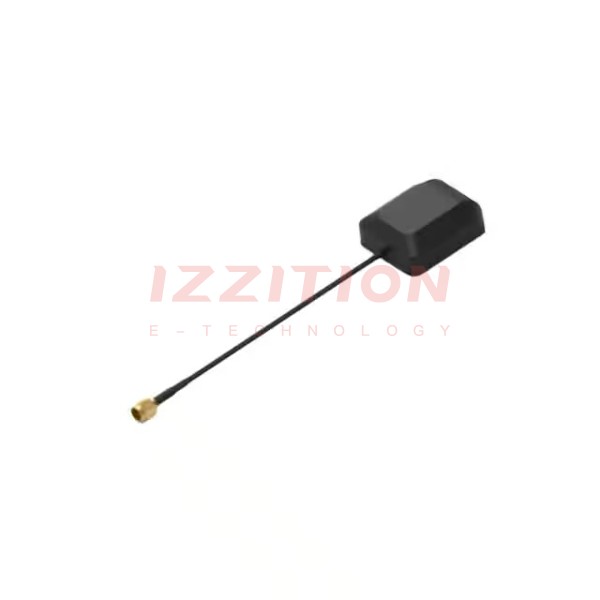

| Part Number | 2195774-1 | 2195775-1 | 2195764-1 | 2195771-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Active | Active |
| RF Family/Standard | - | - | Navigation | 802.15.4, Bluetooth, Cellular |
| Frequency Group | - | - | UHF (1GHz ~ 2GHz) | Wide Band |
| Frequency (Center/Band) | - | - | 1.5925GHz | 829MHz, 2.205GHz, 3.6GHz |
| Frequency Range | - | - | 1.57GHz ~ 1.615GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz |
| Antenna Type | - | - | Chip | Dome |
| Number of Bands | - | - | 1 | 3 |
| VSWR | - | - | 2 | 1.4, 1.5, 2.2 |
| Return Loss | - | - | - | - |
| Gain | - | - | 3.2dBi | 3.2dBi, 5.9dBi, 7dBi, 5.5dBi |
| Power - Max | - | - | 10 W | 150 W |
| Features | - | - | - | Cable - 320mm |
| Termination | - | - | Solder | 4.3/10 - Female |
| Ingress Protection | - | - | - | IP65 |
| Mounting Type | - | - | Surface Mount | Ceiling Mount |
| Height (Max) | - | - | 0.028" (0.70mm) | 3.622" (92.00mm) |
| Applications | - | - | GNSS | 2G, 3G, 4G, 5G, Bluetooth, WLAN, Zigbee™ |
