Please send RFQ , we will respond immediately.

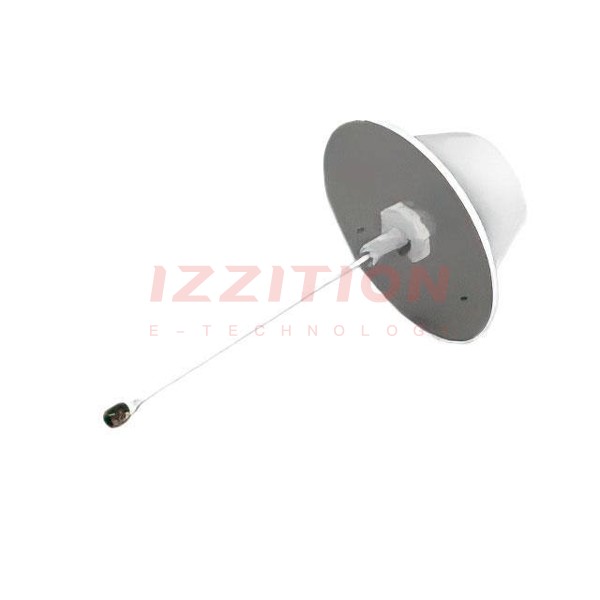

| Part Number | 2195771-1 | 2195774-1 | 2195775-1 | 2195761-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Obsolete | Active |
| RF Family/Standard | 802.15.4, Bluetooth, Cellular | - | - | Navigation |
| Frequency Group | Wide Band | - | - | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 829MHz, 2.205GHz, 3.6GHz | - | - | 1.5825GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz | - | - | 1.559GHz ~ 1.606GHz |
| Antenna Type | Dome | - | - | Ceramic Patch |
| Number of Bands | 3 | - | - | 1 |
| VSWR | 1.4, 1.5, 2.2 | - | - | 3 |
| Return Loss | - | - | - | - |
| Gain | 3.2dBi, 5.9dBi, 7dBi, 5.5dBi | - | - | 4.7dBi, 4.8dBi |
| Power - Max | 150 W | - | - | - |
| Features | Cable - 320mm | - | - | - |
| Termination | 4.3/10 - Female | - | - | Pin |
| Ingress Protection | IP65 | - | - | - |
| Mounting Type | Ceiling Mount | - | - | Adhesive |
| Height (Max) | 3.622" (92.00mm) | - | - | 0.177" (4.50mm) |
| Applications | 2G, 3G, 4G, 5G, Bluetooth, WLAN, Zigbee™ | - | - | GNSS |
