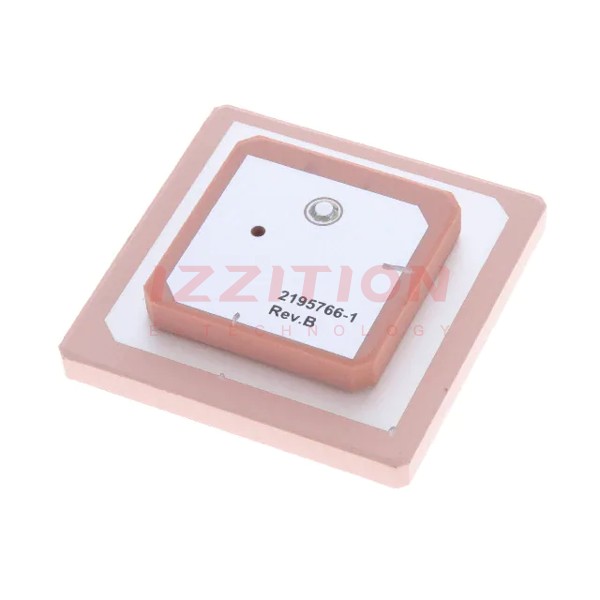

| Part Number | 2195766-1 | 2195767-1 | 2195768-1 | 2195736-1 | 2195760-1 | 2195761-1 | 2195762-1 | 2195763-1 | 2195764-1 | 2195765-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| RF Family/Standard | Navigation | Navigation | Navigation | Bluetooth, Cellular, Navigation, WiFi | 802.15.4, Bluetooth, Navigation, WiFi | Navigation | Navigation | Navigation | Navigation | 802.15.4, Bluetooth, Navigation, WiFi |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | Wide Band | Wide Band | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 1.227GHz, 1.575GHz | 1.227GHz, 1.575GHz | 1.575GHz | 829MHz, 1.515GHz, 1.94GHz, 2.5GHz | 1.5825GHz, 2.45GHz, 5.5125GHz | 1.5825GHz | 1.5825GHz | 1.5825GHz | 1.5925GHz | 1.575GHz, 2.45GHz |
| Frequency Range | 1.224GHz ~ 1.23GHz, 1.572GHz ~ 1.587GHz | 1.224GHz ~ 1.23GHz, 1.572GHz ~ 1.587GHz | 1.573GHz ~ 1.577GHz | 698MHz ~ 960MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | 1.559GHz ~ 1.606GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | 1.559GHz ~ 1.606GHz | 1.559GHz ~ 1.606GHz | 1.559GHz ~ 1.606GHz | 1.57GHz ~ 1.615GHz | 1.57GHz ~ 1.58GHz , 2.4GHz ~ 2.5GHz |
| Antenna Type | Ceramic Patch | Ceramic Patch | Ceramic Patch | Whip, Tilt | PCB Trace | Ceramic Patch | Ceramic Patch | Ceramic Patch | Chip | Chip |
| Number of Bands | 2 | 2 | 1 | 4 | 3 | 1 | 1 | 1 | 1 | 2 |
| VSWR | - | - | - | 2.5 | 2.5 | 3 | 3 | 3 | 2 | - |
| Return Loss | -10dB | -10dB | -10dB | - | - | - | - | - | - | -10dB |
| Gain | 4dBi, 5dBi | 5dBi, 4.5dBi | 19dBi | -1dBi, 0dBi, 1dBi, 2.5dBi | 1dBi, 3dBi | 4.7dBi, 4.8dBi | 4.1dBi, 5.7dBi | 26dBi | 3.2dBi | 0.69dBi, 0.97dBi |
| Power - Max | - | - | - | 10 W | 10 W | - | - | - | 10 W | - |
| Features | - | - | Cable - 83mm, LNA | - | Cable - 150mm | - | - | Cable - 70mm, LNA | - | - |
| Termination | Pin | Pin | U.FL (UMCC), IPEX MHF1 | SMA Male | U.FL (UMCC), IPEX MHF1 | Pin | Pin | U.FL (UMCC), IPEX MHF1 | Solder | Solder |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Adhesive | Adhesive | Adhesive | Connector Mount | Adhesive | Adhesive | Adhesive | Adhesive | Surface Mount | Surface Mount |
| Height (Max) | 0.350" (8.90mm) | 0.585" (14.86mm) | 0.250" (6.35mm) | 6.220" (158.00mm) | 0.591" (15.00mm) | 0.177" (4.50mm) | 0.161" (4.10mm) | 0.354" (9.00mm) | 0.028" (0.70mm) | 0.020" (0.50mm) |
| Applications | GNSS | GNSS | GNSS, GPS | Bluetooth, GNSS, LoRa, LTE, Sigfox, Wi-Fi | Bluetooth, GNSS, Wi-Fi, Zigbee™ | GNSS | GNSS | GNSS | GNSS | Bluetooth, GNSS, Wi-Fi, Zigbee™ |
