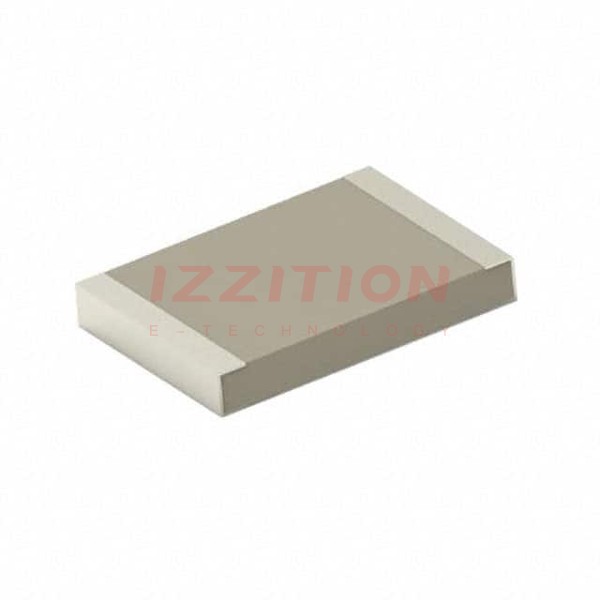

| Part Number | 2195764-1 | 2195766-1 | 2195767-1 | 2195765-1 | 2195768-1 | 2195774-1 | 2195760-1 | 2195761-1 | 2195762-1 | 2195763-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| RF Family/Standard | Navigation | Navigation | Navigation | 802.15.4, Bluetooth, Navigation, WiFi | Navigation | - | 802.15.4, Bluetooth, Navigation, WiFi | Navigation | Navigation | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | UHF (1GHz ~ 2GHz) | - | Wide Band | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.5925GHz | 1.227GHz, 1.575GHz | 1.227GHz, 1.575GHz | 1.575GHz, 2.45GHz | 1.575GHz | - | 1.5825GHz, 2.45GHz, 5.5125GHz | 1.5825GHz | 1.5825GHz | 1.5825GHz |
| Frequency Range | 1.57GHz ~ 1.615GHz | 1.224GHz ~ 1.23GHz, 1.572GHz ~ 1.587GHz | 1.224GHz ~ 1.23GHz, 1.572GHz ~ 1.587GHz | 1.57GHz ~ 1.58GHz , 2.4GHz ~ 2.5GHz | 1.573GHz ~ 1.577GHz | - | 1.559GHz ~ 1.606GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | 1.559GHz ~ 1.606GHz | 1.559GHz ~ 1.606GHz | 1.559GHz ~ 1.606GHz |
| Antenna Type | Chip | Ceramic Patch | Ceramic Patch | Chip | Ceramic Patch | - | PCB Trace | Ceramic Patch | Ceramic Patch | Ceramic Patch |
| Number of Bands | 1 | 2 | 2 | 2 | 1 | - | 3 | 1 | 1 | 1 |
| VSWR | 2 | - | - | - | - | - | 2.5 | 3 | 3 | 3 |
| Return Loss | - | -10dB | -10dB | -10dB | -10dB | - | - | - | - | - |
| Gain | 3.2dBi | 4dBi, 5dBi | 5dBi, 4.5dBi | 0.69dBi, 0.97dBi | 19dBi | - | 1dBi, 3dBi | 4.7dBi, 4.8dBi | 4.1dBi, 5.7dBi | 26dBi |
| Power - Max | 10 W | - | - | - | - | - | 10 W | - | - | - |
| Features | - | - | - | - | Cable - 83mm, LNA | - | Cable - 150mm | - | - | Cable - 70mm, LNA |
| Termination | Solder | Pin | Pin | Solder | U.FL (UMCC), IPEX MHF1 | - | U.FL (UMCC), IPEX MHF1 | Pin | Pin | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Adhesive | Adhesive | Surface Mount | Adhesive | - | Adhesive | Adhesive | Adhesive | Adhesive |
| Height (Max) | 0.028" (0.70mm) | 0.350" (8.90mm) | 0.585" (14.86mm) | 0.020" (0.50mm) | 0.250" (6.35mm) | - | 0.591" (15.00mm) | 0.177" (4.50mm) | 0.161" (4.10mm) | 0.354" (9.00mm) |
| Applications | GNSS | GNSS | GNSS | Bluetooth, GNSS, Wi-Fi, Zigbee™ | GNSS, GPS | - | Bluetooth, GNSS, Wi-Fi, Zigbee™ | GNSS | GNSS | GNSS |
