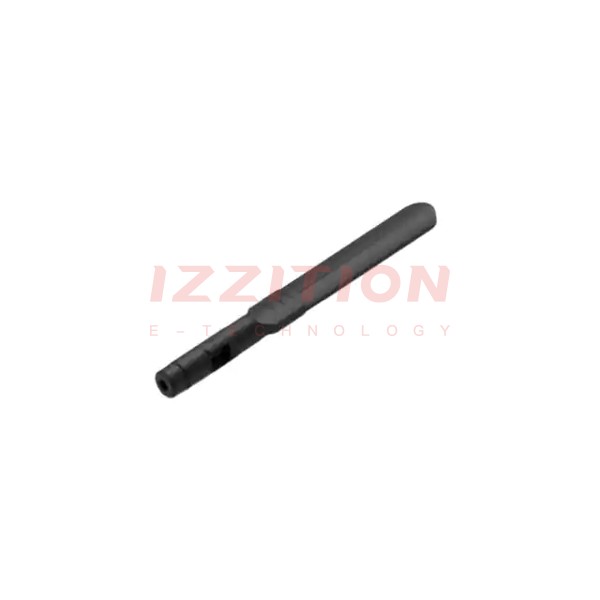

| Part Number | 2195736-1 | 2195766-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| RF Family/Standard | Bluetooth, Cellular, Navigation, WiFi | Navigation |
| Frequency Group | Wide Band | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 829MHz, 1.515GHz, 1.94GHz, 2.5GHz | 1.227GHz, 1.575GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | 1.224GHz ~ 1.23GHz, 1.572GHz ~ 1.587GHz |
| Antenna Type | Whip, Tilt | Ceramic Patch |
| Number of Bands | 4 | 2 |
| VSWR | 2.5 | - |
| Return Loss | - | -10dB |
| Gain | -1dBi, 0dBi, 1dBi, 2.5dBi | 4dBi, 5dBi |
| Power - Max | 10 W | - |
| Features | - | - |
| Termination | SMA Male | Pin |
| Ingress Protection | - | - |
| Mounting Type | Connector Mount | Adhesive |
| Height (Max) | 6.220" (158.00mm) | 0.350" (8.90mm) |
| Applications | Bluetooth, GNSS, LoRa, LTE, Sigfox, Wi-Fi | GNSS |
