Please send RFQ , we will respond immediately.

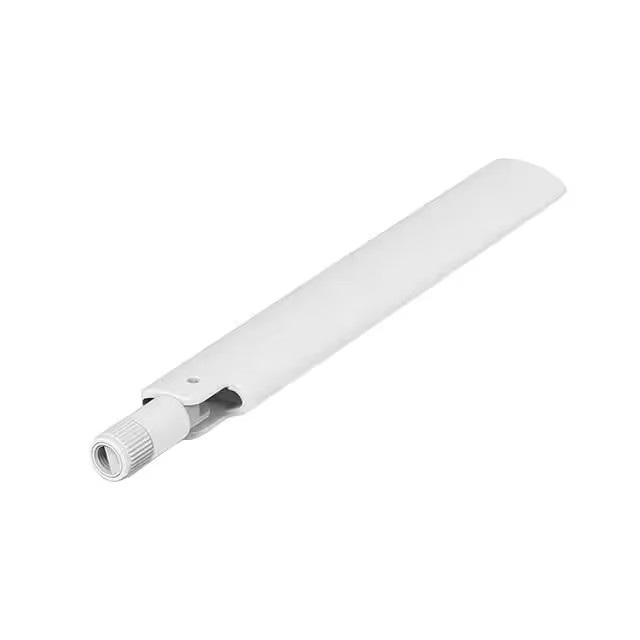

| Part Number | 2195729-2 | 2195729-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| RF Family/Standard | Cellular, Navigation | Cellular, Navigation |
| Frequency Group | Wide Band | Wide Band |
| Frequency (Center/Band) | 875MHz, 1.515GHz, 2.205GHz, 3.55GHz, 4.7GHz, 5.5375GHz | 875MHz, 1.515GHz, 2.205GHz, 3.55GHz, 4.7GHz, 5.5375GHz |
| Frequency Range | ||
| Antenna Type | Blade, Tilt | Blade, Tilt |
| Number of Bands | 6 | 6 |
| VSWR | 3 | 3 |
| Return Loss | - | - |
| Gain | 3dBi, 0.98dBi, 0dBi, 1dBi, 1.5dBi, 2.4dBi | 3dBi, 0.98dBi, 0dBi, 1dBi, 1.5dBi, 2.4dBi |
| Power - Max | - | - |
| Features | - | - |
| Termination | SMA Male | SMA Male |
| Ingress Protection | - | - |
| Mounting Type | Connector Mount | Connector Mount |
| Height (Max) | 5.350" (135.89mm) | 5.350" (135.89mm) |
| Applications | 5G, GNSS, LTE | Galileo, GLONASS, GNSS, GPS, LTE, UMTS, WCDMA |
