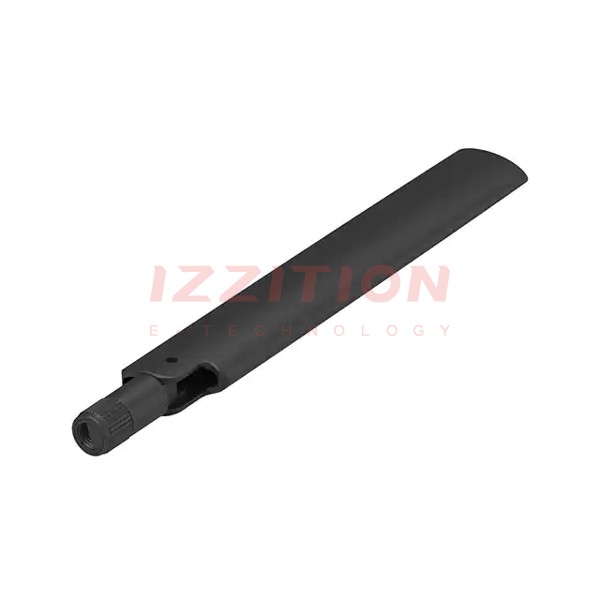

| Part Number | 2195729-1 | 2195729-2 | 2195728-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| RF Family/Standard | Cellular, Navigation | Cellular, Navigation | - |
| Frequency Group | Wide Band | Wide Band | - |
| Frequency (Center/Band) | 875MHz, 1.515GHz, 2.205GHz, 3.55GHz, 4.7GHz, 5.5375GHz | 875MHz, 1.515GHz, 2.205GHz, 3.55GHz, 4.7GHz, 5.5375GHz | - |
| Frequency Range | - | ||
| Antenna Type | Blade, Tilt | Blade, Tilt | - |
| Number of Bands | 6 | 6 | - |
| VSWR | 3 | 3 | - |
| Return Loss | - | - | - |
| Gain | 3dBi, 0.98dBi, 0dBi, 1dBi, 1.5dBi, 2.4dBi | 3dBi, 0.98dBi, 0dBi, 1dBi, 1.5dBi, 2.4dBi | - |
| Power - Max | - | - | - |
| Features | - | - | - |
| Termination | SMA Male | SMA Male | - |
| Ingress Protection | - | - | - |
| Mounting Type | Connector Mount | Connector Mount | - |
| Height (Max) | 5.350" (135.89mm) | 5.350" (135.89mm) | - |
| Applications | Galileo, GLONASS, GNSS, GPS, LTE, UMTS, WCDMA | 5G, GNSS, LTE | - |
