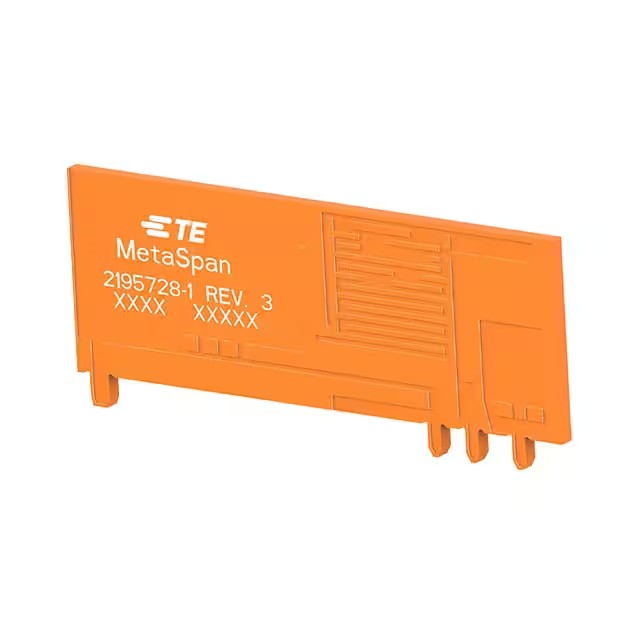

| Part Number | 2195728-1 | 2195729-1 | 2195768-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| RF Family/Standard | - | Cellular, Navigation | Navigation |
| Frequency Group | - | Wide Band | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | - | 875MHz, 1.515GHz, 2.205GHz, 3.55GHz, 4.7GHz, 5.5375GHz | 1.575GHz |
| Frequency Range | - | 1.573GHz ~ 1.577GHz | |
| Antenna Type | - | Blade, Tilt | Ceramic Patch |
| Number of Bands | - | 6 | 1 |
| VSWR | - | 3 | - |
| Return Loss | - | - | -10dB |
| Gain | - | 3dBi, 0.98dBi, 0dBi, 1dBi, 1.5dBi, 2.4dBi | 19dBi |
| Power - Max | - | - | - |
| Features | - | - | Cable - 83mm, LNA |
| Termination | - | SMA Male | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - | - | - |
| Mounting Type | - | Connector Mount | Adhesive |
| Height (Max) | - | 5.350" (135.89mm) | 0.250" (6.35mm) |
| Applications | - | Galileo, GLONASS, GNSS, GPS, LTE, UMTS, WCDMA | GNSS, GPS |
